自然堆积松装密度计参照标准  Administer Standard

GB/T 16913.3-1997。适用于粉尘堆积密度的测定。

GB/T 16913.3-1997.This device applies to the measurement of powder packing density.

二、原理Principle：

粉尘从漏斗口自由落下充满量杯；测定松装状态下量杯内单位体积粉尘的质量，即粉尘堆积密度。

powder freely drop from  hopper opening at a certain height to full of measuring cup. Measure the mass of unit volume  in measuring cup  , namely powder bulk density

三、参数规格Technical specifications

漏斗(流出口直径12.7mm) Funnel (outlet diameter 12.7mm)

漏斗不锈钢材料制成，其中漏斗锥度为60°±0.5

Funnel is made of SS material, in which the funnel taper is 60°±0.5.

量杯容积：100ml    The measuring cup volume: 100ml

配置附件：下料堵塞棒，毛刷，钢尺Configuration accessories: blanking blocking rod, wool brush, steel ruler

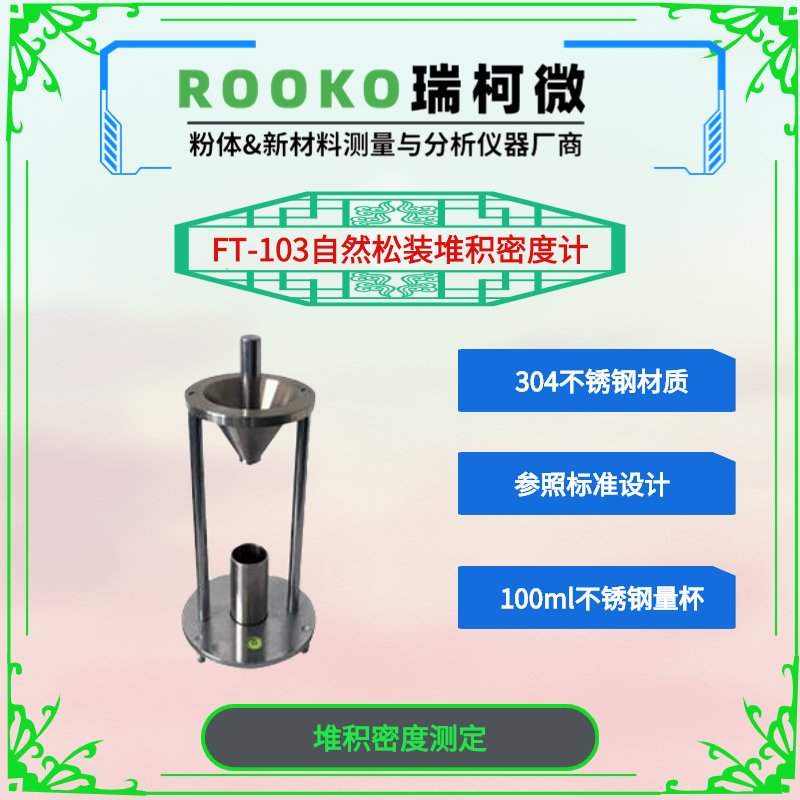

FT-103自然堆积松装密度计
