Nomadic™ Research-Grade Raman Microscope

Overview

BaySpec’s Nomadic™ Raman microscope line is the only Raman microscope on the market today simultaneously equipped with three excitation sources from the visible to near-infrared (532， 785， and 1064 nm). With a goal of maximizing Raman signal and minimizing fluorescence background for real-world samples， this wavelength combination provides unprecedented flexibility for any sample type. Single-wavelength version， and other custom configurations are also available.

Already have a microscope? We can retrofit any commercially available microscope with our Raman engines. Please contact us.

Key Features

• Available in 532， 785， and 1064 nm (custom wavelengths also available)

• 3 independent， high-throughput， transmission-based spectrometers

• Integrated research-grade Olympus® microscope

• Deep-cooled CCD and InGaAs detectors

• High-resolution (2 cm^-1) option available

• Complete software for data and multivariate image analysis

• Competitive pricing

Full Detail

The Nomadic™ is equipped with dedicated spectrographs and detectors for each excitation wavelength， ensuring optimal spectral coverage， resolution， and sensitivity， with no trade-offs or compromises. The Nomadic™ also features fully automated operation， covering laser switching， sample position， slit width， and laser power.

Coupled to an Olympus® research-grade optical microscope， the Nomadic™ can deliver confocal measurements with spatial resolution less than 1 μm. BaySpec’s Spec 20/20 software suite allows full control over instrument hardware， data acquisition， data analysis， and integrated Multivariate Image Analysis (MIA) toolbox by Eigenvector Research， Inc.

A Raman probe can share the power of Nomadic™ by connecting to the fiber ports (optional) on the side panel of Nomadic™.

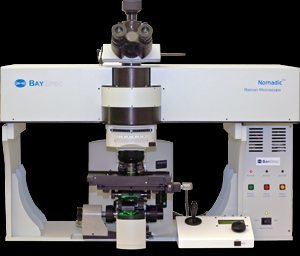

Nomadic™ 3-in-1 with enclosure

Already have a microscope? –We can retrofit any commercially available microscope with one of our Raman engines， please contact us for an affordable quote.
