仪器简介：

The PDV-100 and PDVa-100 Portable/Disposable Viscometers are revolutionary， portable， efficient， alternatives to larger full-featured laboratory viscometers. The PDV-100 and PDVa-100 are simple to use， accurate， low-cost， compact， and lightweight field viscometers that can be taken anywhere to measure the viscosity of Newtonian and non-Newtonian fluids. The PDV-100 and PDVa-100 combine economy， ease of operation， accuracy， reliability， and versatility. High quality of instrument guarantees reliable performance for a long life. Small sample size and temperature control can be accommodated.

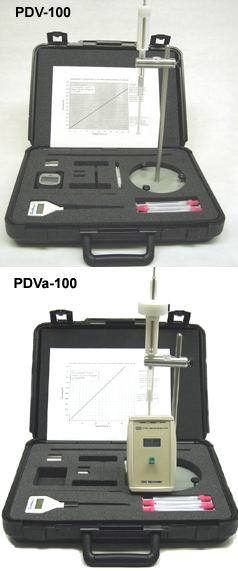

The PDV-100 and PDVa-100 Portable/Disposable Viscometers consist of a support stand and a disposable sample tube filled with the liquid of which the viscosity is to be determined. Viscosity of the sample can be determined by measuring the falling time of a controlled needle through a predetermined distance of the fluid held in the sample tube. The falling time is measured automatically (PDVa-100) or manually by a stopwatch (PDV-100).

技术参数：

1、Viscosity Range：0.7 to 107 cP(mPa s)

2、Temperature Range:Room

3、Accuracy & Repeatability：Better than 1%

4、Test Sample Volume Approx. 4.5cm3

5、Needle Material Metal：(Al， Ti， S.S.)

6、Needle Densities 6 to 130 g/cm3*

7、Total Instrument Weight 2 kg (4.4 lbs)

主要特点：

1、Disposable Sample Tube (4.5ml)(can be reused up to 30 times)

2、Measures Absolute Viscosity without Instrument Calibration

3、Field Viscosity Test

4、Inexpensive Non-Newtonian Viscosity Measurements

5、Quick and Easy Viscosity Measurements

6、Inexpensive

7、Automatic Falling Time Measurements to 0.001 second (PDVa-100)
