产品信息：

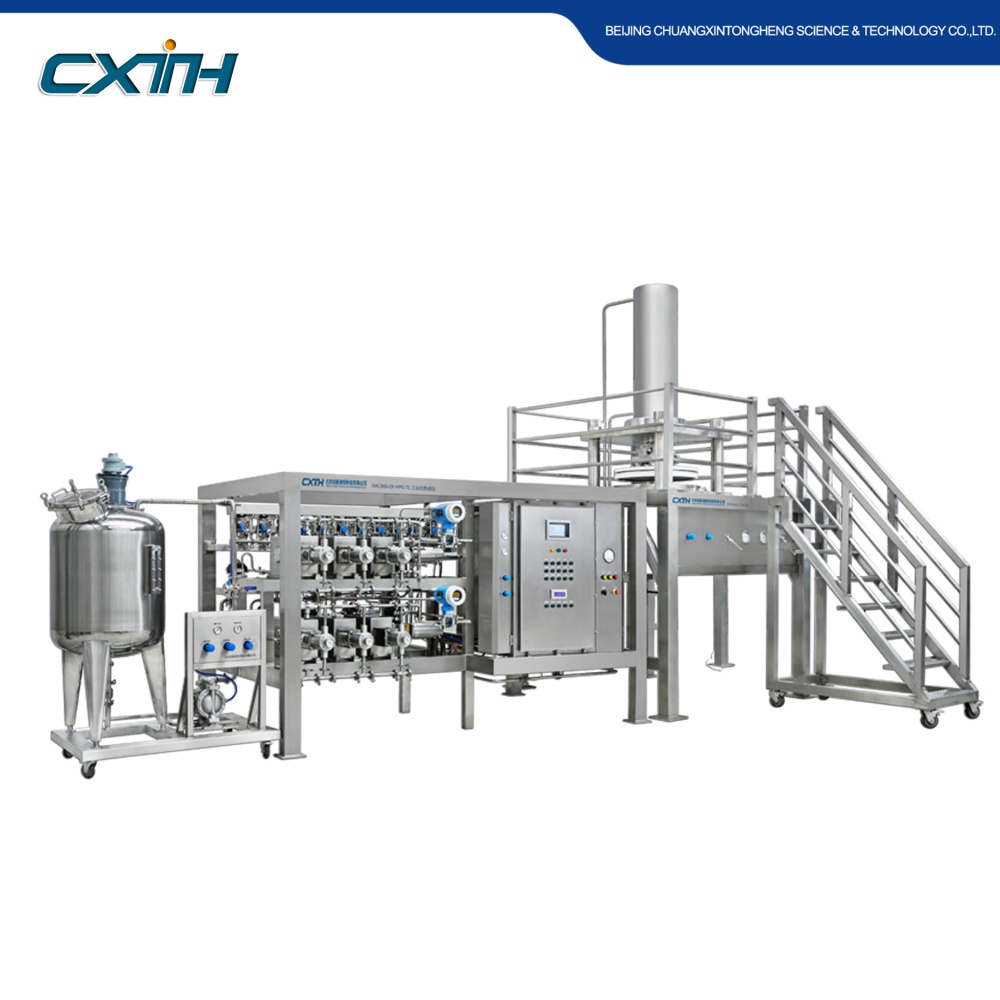

以800DAC系统为代表的大型纯化分离设备的正式投入使用，是我公司在工业化色谱领域中走进世界前列的明显标志。

800DAC采用了防爆设计、集成化设计、智能化操作设计、温度控制设计，可以手动操作，也可以通过电脑远程控制。并附加了活塞及柱底法兰拆卸与安装系统，更加人性化。

系统包括800mmDAC柱子系统、输液系统、进样系统、馏分收集系统、匀浆辅助系统、检测及电气控制系统、软件系统。具有：正常工作、进样、反冲、冲洗、装柱、排气泡等模式。并可以根据客户需求进行相应的改变。

国际**的大流量高压柱塞泵设计，专业的动态轴向压缩制备柱设计。

具有分级管理、历史纪录查询、数据追踪和电子签名等功能。

符合cGMP要求，提供全套IQ/OQ认证文件。

Our 800DAC systems are put into use on the customer’s site. It is the significant indicator that we step in the world front rank of industrial preparative HPLC system. The design of 800DAC system includes explosion proof、integration、intelligent operation、temperature control and etc. It can operate manually or automatically by the PC. The humanity design also includes the disassembly and installation system of column piston and flanges. The whole 800DAC system includes the DAC column、system control system、solvent delivery system、injection system、slurry system、detection system、fraction system and chromatography software. It has many different kinds of working modes. Such as：injection、degassing、back flush、packing、eluting and etc. This kind of system also can be customized on demands. International level large flow rate high pressure piston pump design， professional dynamic axial compression column design.

Its performance includes user access、chromatography history、audit trails、electric signature and etc. Full compliant with cGMP and IQ/OQ certification documents.

技术参数：

泵的流速范围：100ml/min-80000ml/min

Pump Flow Rate Range：100ml/min-80000ml/min

泵的工作模式：单泵、低压梯度或者高压梯度

Pump Work Mode：isocratic、low pressure gradient or high pressure gradient

泵的工作压力：10-20Mpa

Pump Working Pressure：10-20Mpa

检测器检测波长：190-700nm

UV Detector Wavelength：190-700nm

制备柱：ID800mm、动态轴向压缩制备柱、316L

Preparative Column：

ID800mm、dynamic axial compression column、316L

进样方式：进样阀或进样泵

Injection：Injection valve or pump

色谱工作站：CXTH-CLARITY

Chromatography Software：CXTH-CLARITY

收集：手动或自动切换阀

Fraction：Manual or automatic switching valve
