LIMO BTS(Beam Transformation System)

直接联系

聚擘国际贸易（上海）有限公司

德国

产品规格型号

参考报价：

面议

关注度：

1572

产品介绍

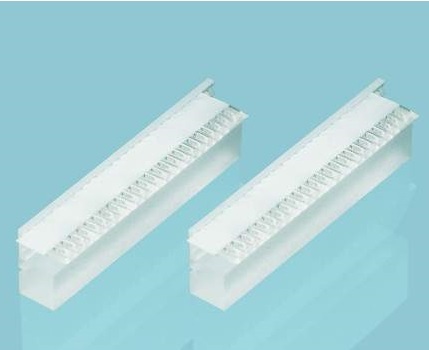

Beam Transformation System (BTS)

The BTS transforms the asymmetrical far field distribution of a diode laser bar into a nearly symmetrical beam parameter product. A symmetrical focus can be generated by an additional HOC.

BTS	Pitch [mm]	Remaining Divergence Fast Axis[mrad]	Datenblatt
BTS(FAC160)-P0.2	0.2	< 12	BTS_FAC160-P0.2
BTS(FAC286)-P0.4	0.4	< 13	BTS_FAC286-P0.4
BTS(FAC286)-P0.4	0.4	< 10	BTS_FAC286-P0.4
BTS(FAC286)-P0.4	0.4	< 7	BTS_FAC286-P0.4
BTS(FAC365)-P0.4	0.4	< 6	BTS_FAC365-P0.4
BTS(FAC286)-P0.5	0.5	< 13	BTS_FAC286-P0.5
BTS(FAC286)-P0.5	0.5	< 10	BTS_FAC286-P0.5
BTS(FAC286)-P0.5	0.5	< 7	BTS_FAC286-P0.5
BTS(FAC365)-P0.5	0.5	< 5.5	BTS_FAC365-P0.5
BTS(FAC410)-P0.5	0.5	< 5	BTS_FAC410-P0.5

For your specific requirements we also offer alignment and fixation of the BTS module to a laser bar and other customized options. Please find further information on our contract assembly service here.

Need more information or advice?

Then send us your request via the contact formor call us.
