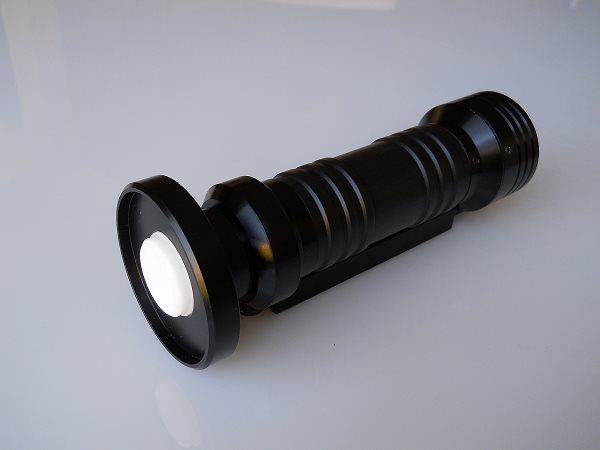

CR-110 可以根据客户选择的取样频率，进行快速的数据采集。是理想闪烁分析仪器，适用与LED灯具、背光、显示器、脉冲光源的闪烁特性分析。
显示器闪烁特性测试兼容IDMS、ICDM测试标准，包含FFT算法计算计算闪烁主频率、加权闪烁水平等，匹配人眼对闪烁的直观感受
| Wavelength Range | 380 – 780 nm |
|---|---|
| Luminance Range | 0.0002 fL to 15000 fL 0.0002 fL @ Signal to Noise Ratio > 10， 20 seconds exposure 0.001 fL @ Signal to Noise Ratio > 10， 0.5 second exposure 0.001 fL @ Signal to Noise Ratio > 100， 20 seconds exposure 1500 fL @ Signal to Noise Ratio > 8000， 1 millisecond exposure |
| Luminance Accuracy | ± 2 % @ 0.1 fL， 0.4 second exposure |
| Luminance Repeatability | 0.2 % @ 0.1 fL， 0.4 second exposure 1.5 % @ 0.01 fL， 0.5 second exposure 1.5 % @ 0.001 fL， 20 seconds exposure |
| Polarization error: | ≤ 0.1 % |
| ADC Resolution: | 16 bits |
| Synchronization frequencies: | 10 - 500 Hz (Custom Synchronization from 10 Hz to 10 KHz available) |
| Exposure Time Range: | 1 ms to 20 seconds |
| Power Requirements | 5V， 120 mA (600 mW) via USB 2.0 |
| Interface | USB 2.0， Ethernet， RS-232 |
| Weight / Mass | 12oz. (0.34 Kg.) |
时间特性
| Electro-optical Bandwidth: | 1 MHz. |
|---|---|
| Maximum Sampling Rate: | 333 K samples per second |
| Minimum Sampling Period: | 3μ seconds |
| ADC resolution | 12 bits |
| Number of ranges | 4 manual (Auto-Range available) |
| Noise Filtering | Proprietary smart noise filter technology |
