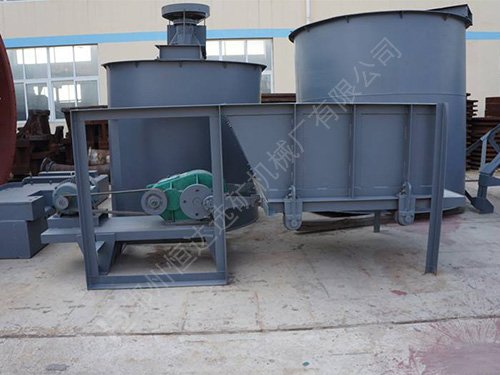

槽式给料机广泛用于冶金、矿山、化工、建筑、选矿、煤碳等行业，将块物料由储料仓送往受料装置。
该机主要用于破碎机前道工序的给料，适用于较大颗粒及块状物料的均匀给料。
槽式给料机可以架设于地面，也可以吊装在矿仓卸料口上。摆动行程可由驱动装置偏心轮进行调整。槽式给料机的槽体宽度约为给料大粒度的 2-2.5 倍。
Slot feeder is widely used in metallurgy, mining, chemical,
construction, mineral processing, coal and other industries, and
transfer the block material from the storage silo to the feeding device.
It is used for feeding before the procedure process of crusher ,it is
also applied to feed the larger particles and block material
well-distributedly.
Slot feeder can be set up on the ground, or hoisted on the ore
warehouse unloading mouth. Swing motion can be adjusted by the eccenter
of driver set. Slot feeder ’s slot width is about2-2.5 times of the
maximum particle size of feeding.
主要型号及技术参数:
MAIN MODELS AND TECHNICAL PARAMETERS:
型号Model | CG500×400 | CG600×500 | CG980×1240 | CG1000 ×1900 | CG1200 ×1000 |
出料口尺寸（宽×高） Discharge opening(mm) | 500×400 | 600×500 | 980×1240 | 1000×1900 | 1200×1000 |
**给料粒度The top size of feeding(mm) | 150 | 200 | 350 | 300 | 400 |
给矿量The quantity of feeding(t/h) | 7-17 | 10.5-25.5 | 36-90 | 300 | 165-415 |
摆动行程Oscillation stroke(mm) | 0-50 | 0-50 | 0-75 | 290 | 50-125 |
摆动次数wobbly frequency(次/分) | 38.9 | 38.9 | 23.7 | 27 | 30.85 |
电机型号 | Y100L2-4 | Y112M-4 | Y160M-6 | Y160M-4 | Y160L-4 |
功率Power(kw) | 3 | 4 | 7.5 | 7.5 | 15 |
外形尺寸（长×宽×高）Outside measurement (L×W×H)(mm) | 2200×810 ×750 | 2750×910 ×855 | 3560×1000 ×1070 | 3900×1590 ×1340 | 3600×1357 ×1310 |
重量Weight(kg) | 950 | 1054 | 1700 | 2691 | 3200 |
