BTS-HOC

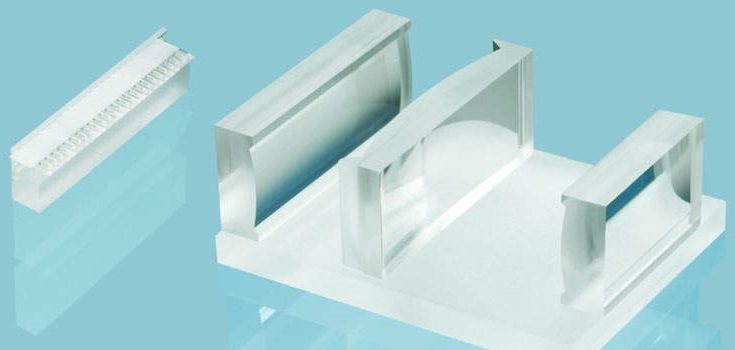

LIMO's BTS-HOC is a simple and efficient system for coupling the light of all emitters of a high-power diode laser bar into one fiber. It consists of only two elements， the Beam Transformation System (BTS) and the Hybrid Optical Chip (HOC).
Emitter size/pitch [μm] | ? Fiber core [μm] | NA | Efficiency [%] | Data sheet |
200 / 400 | 400 | 0，22 | > 70 | BTS-HOC_316 |
200 / 400 | 400 | 0，22 | > 70 | BTS-HOC_319 |
150 / 500 | 200 | 0，22 | > 70 | BTS-HOC_167 |
150 / 500 | 400 | 0，22 | > 80 | BTS-HOC_320 |
150 / 500 | 400 | 0，22 | > 80 | BTS-HOC_326 |
150 / 500 | 600 | 0，22 | > 80 | BTS-HOC_333 |
150 / 500 | 600 | 0，22 | > 80 | BTS-HOC_327 |
Additionally to the BTS-HOC a compact version was developed. It has the advantage of a smaller footprint and increased cost-effectiveness.
Emitter size/pitch [μm] | ? Fiber core [μm] | NA | Efficiency [%] | Data sheet |
150 / 500 | 200 | 0，22 | > 70 | CBTS-HOC_165 |
150 / 500 | 400 | 0，22 | > 80 | CBTS-HOC_334 |
150 / 500 | 600 | 0，22 | > 80 | CBTS-HOC_336 |
