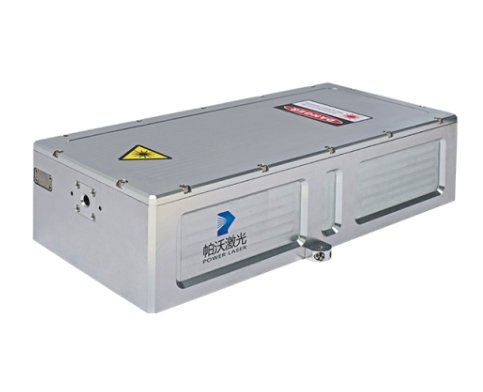

高能量脉冲皮秒激光器
直接联系
索镭德激光科技（苏州）有限公司
江苏
面议
索镭德
高能量脉冲皮秒激光器
44
◆ 窄脉宽特性 ◆Unique end-pumped technology, small volume, long lifetime ◆ 高峰值功率 ◆Perfect beam quality and High beam pointing stability ◆ 可选波长 ◆High precision temperature control system to ensure the pulse stability ◆ 结构紧凑 ◆Innovative thermal lens compensation cavity design
PWH系列低重频脉冲皮秒激光器，可选择1064nm、532nm和355nm三波段输出，可单个或多波长切换使用；通过皮秒激光种子源、选单器件得到比较低的重复频率的皮秒激光，再经通过预放大装置及能量放大装置产生高能量的皮秒激光。经过长时间验正是客户的理想选择。
PWH series low repetition frequency pulse pico-second laser has three-band output which is 1064nm, 532nm, 355nm, and singleor multiple wavelength could be switch used; reaching low repetition frequency pico-second laser by seed source and pulsepicker device, then producing high energy pico- second laser through laser pre- amplifier and laser energy amplifier. To meet 24/7industry environment atter long time testing, it's the ideal choice of micro processing.
| 应用领域 | Applications |
◆ 强场光学 ◆ 材料加工 ◆ 太赫兹光学 ◆ 分子动力学反应 ◆ 高精度激光测距 | ◆ Microelectronics resistance regulation ◆ Solar film-scribed ◆ Metal and non-mental marking ◆ Micro hole dilling ◆ Light source of scientific research |
光学参数 Specifications | |
型号 Model | PWH- 1064-2 |
波长 Wavelength | 1064nm/532nm/355nm |
重复频率 Repetition Rate | 1Hz~ 1000Hz |
脉冲能量1 Energy **能量指1HZ频率下 | 1064nm: 100mJ max |
532nm: 50mJ max | |
355nm: 30mJ max | |
脉冲宽度 Pulse width | 10~ 30ps |
偏振方向 Polarization | 垂直@IR Vertical@IR |
能量稳定性 Energy stability | <2%@RMS |
指向稳定性 Pointing stability | <20 μ rad |
工作温度 Operation temperature | 15℃-35℃ (不结露) 15℃-35℃ (No condensation) |
制冷方式 Cooling | Water |
说明Notes:
1.此为该系列产品的**能量，具体脉冲能量和脉冲频率参数请咨询销售代表。
This is the highest energy of this series of products.
Please consult the sales representative for specific pulse energy and pulse frequency parameters.
PWH-1064-2激光机械尺寸图
PWH-1064-2 Laser Dimension Figure
