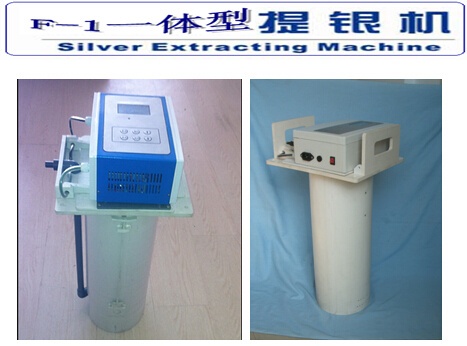

FSTAR f-1提银机系统

直接联系

弗士达仪器

辽宁

产品规格型号
参考报价:

面议

关注度:

782

产品介绍

F-1一体型提银机系一款结合美国和俄罗斯**技术,并有自主技术**的,经过中国市场近十年的磨砺,根据客户使用反馈信息,对产品不断改进更新而推出的用户使用界面友好型的提银机。产品一经推出市场,深受用户信赖与喜爱并远销东南亚地区及乌克兰和俄罗斯。

基于长期银回收经验研发、制造、改进的F-1一体型提银机,特别适合用于提取回收无损检测、菲林输出、光绘制版等行业的废定影液、彩扩行业漂定液及银电镀液中的银。这是一款实用的,高回报性的设备,可以根据所处理废液的成份不同而调节操作参数,使用简便安全,外观设计便捷轻巧是该型提银机的主要特点。所回收的银成块状,纯度高于98%,平均提银速度达110g/h.

欢迎阁下垂询一切有关提银机事宜!

F-1 Compact Silver Extracting Machine is a kind of user friendly silver recovery Equipment,which had been tested in the chinese market for 10 years.

The machine had been improved step by step according to the advice from the user in the past 10 years.Since the recovery machine combine with the American and the Rusian patent techonology,and our owns domestic patent techonology,So , F-1 Compact Silver Extracting Machine is very popular with the users since it appeared in the market in 2004,now the machine has been exported to the South East Asia , Russian and Ukraine market.

Made from a long experience in silver recovery, this electrolytic recovery unit is specifically build-up for silver recovery from silver plating /bleach/fixer exhausted solutions. This is the most practical and remunerative system, having adjustable operations parameters following the liquor composition. Easy and safe to use, and compact design are the keys of this silver recovery equipment. Recovered silver is in flakes, and the degree of purity is higher than 98%. This silver recovery unit is designed for an average recovery of 110 g/h of silver.

Please contact us to have a quotation, thank You!

产品应用领域/Application fields

应用于印刷菲林输出行业、线路板菲林光绘制版行业、彩扩冲印行业,医疗X光、工业无损探伤、纺织印染印花菲林输出行业的含银定影液及漂定液以及电镀行业的含银废液的电解提银回收。

F-1 Compact Silver Extracting Machine can be applied to the folowing indutries:

Printing film plate making,PCB film ploter,the color enlargement,midical X-ray,industrial flow detection,textile and dye printing, Silver plating,tail washings of silver ore,etc.

F-1 Compact Silver Extracting Machine can recovery the silver from the waste fixer solution, the color enlargement blix with a high content of bleaching,the silver plating waste solution.

产品科技**/Leading technology

国际技术**自主技术**结合先进全自动提银机

The most advanced full automatic silver extracting machine combine with the domestically and the internationally patent technology,utillizing full automatic treatment of waste solution by control with PC in the working process.

智能电源模块智能电解,确保提银纯度及提银深度

Making use of intelligent power module to adjust the electrolytic current to waste solution concentration to ensure the silver purity and the depth of waste solution treatment.

提出白银数量提示、提银自动报警、万年历功能

Viewing at any time the amount of silver extracted by activating the internal readtime monitor module of the machine;giving alarm for user to remove the silver when reaching acertain thickness on the cathode.

产品性能特点/Product features

处理废液中银的深度高于99.5%,提取白银纯度99.8%以上

The depth of waste solution treatment for silver is over 99.5% and the purity of silver extraction over 99.8%

运行实现微机全自动化控制,无需专人看管,耗能低(功率小于40W),无二次污染

Full automatic control by PC and no tending by people necessary during operation,low energy consumption (power less than 40W)and free from secondary pollution.

残留废液银含量可低于0.010克/升。

The Silver content in residual waste solution lower than 0.01g/L

可以处理目前国内外电解法难以处理的彩扩漂定液、电镀废液等中的银

Able to treat the color enlargement blix with a high content of bleaching beyond treatment currently with the electrolytic process domestically and abroad.

本设备不需要任何耗材和电解促进剂,运营维护方便,成本低。

Needing no consumable and electrolytic promoter,it is convenient for operation and maintenance and low in cost.

全防腐设计,机件寿命长,取银方便

Complete anti-corrosion design ,long service life for machine parts,convenient to get silver.

产品高收益比率---物有所值/Good value for margin

提银机提取白银的收益是非常可观的,以一个普通规模的制版公司为例:每个月产生的定影废液约1000升,按每升含银量15克计算,可提取白银约15000克,每克按3.9元计算,价值为58,500.00元,是出售废液价值的4-5倍,其它行业可参考下表:

规模

中等规模光绘公司/菲林输出中心

普通医院X光科

普通彩扩店

月均废液量

1000L

300L

300 L

废液银含量

15/

10/

3/

可提取银

15,000

3,000

900

银价值

58,500.00

11,700.00

3,510.00

The benefits from extracting silver in the waste solution with the silver extracting machine is quite considerable .Taking an middle- scale film ploter company as an example:

Around 1000L waste fixer solution can be generrated each month ,generrally speaking,it contains 15 g silver per liter waste solution. In other words,around 15,000g silver can be extracted from the waste fixer solution each month which worth RMB58,500.00 when based on the silver price RMB 3.9 yuan per gram,which is 4~5times in contrast with direct selling the waste solution.Please refer to the following table for other trades:

scale

Middle-scale film ploter company

Ordinary hospital X ray

Ordinary color enlargement shop

Waste solution

each month

1000L

300L

300 L

Silver content of waste solution

15g/L

10g/L

3g/L

Silver available for extraction

15,000g

3,000g

900g

Silver value

RMB58,500.00yuan

RMB11,700.00yuan

RMB3,510.00yuan

行业背景介绍

您知道吗?

我国每年有近600吨白银从各种废液中白白流失,如印刷厂的菲林输出中心废液,X光工业无损探伤,PCB线路板光绘菲林中心,医院放射科,照相馆,彩扩中心,废定影液、漂定液,废胶片,相片,CT片,X光片,印像纸,以及玻璃制镜厂,保温瓶厂,矿厂,电子原件厂,电影制片厂,感光材料厂,电镀厂等工业废液。即使采用化学法或其它处理方法也会使白银流失30%,同时会对环境造成严重污染。

各行业含银废液采用提银机后获得经济效益参考表

行业类型

废液量

(升/月)

银含量

(克/升)

卖废液效益

(元)

提银机提银量

(克/月)

提银效益

(元)

提银月增值

(元)

提银年增值

(元)

彩扩业

300

4

3000

1200

4800

1800

21600

印刷制版

1000

25

62500

25000

100000

37500

450000

医院

300

6

4500

1800

7200

2700

32400

电镀厂

20000

1

50000

20000

80000

30000

360000

PCB

3000

3

22500

9000

36000

13500

162000

无损探伤

3000

7

52500

21000

84000

31500

378000

您不心动吗?

4/升的含银废液=16每月 300=4,800=57,600

25/升的含银废液=100元每月 1000=100,000=1,200,000

这就是FSTAR提银机所能达到的!

购买提银机吧!

假若您懂得收集和努力,您将在一年之内悄悄地成为百万富翁!

FSTAR提银机将通过对各种含银废液的白银提取,带您达到理想的财富彼岸!
