仪器特点

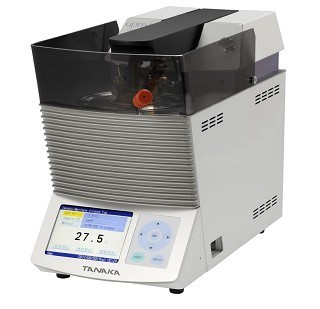

1.SINGLE ACTION SETTING 单一动作设定

The flash detector rings and the temperature sensor are permanently mounted on a swing-arm assembly， which allows an easy setting of the specimen闪点检测环和温度传感器一起组装在测试摇臂上，加样便捷

2. EASY OPERATION 操作简单

Select a test mode and enter the expected flash point; while the instrument executes the test， you are free to do other lab work. The instrument follows the exact procedures prescribed in the test method， and the completion of the test cycle is signaled by beeps. The test result is brightly shown on the color LCD module.只需选好试验模式，输入预期闪点，仪器就严格按照标准自动进行测试，实验结束蜂鸣报警，显示试验结果。

3. INTERCHANGEABLE IGNITION SOURCE 可互换的点火源

apm-8 is equipped with both gas and electric igniter as the ignition source. It only takes a few minutes to switch from gas to electric or vice versa.

气、电点火两用，切换便捷

4. DRAFT PROTECTION SHIELD COVER 保护罩

A FM4910 conforming cover insures the flame integrity. This material shall meet the numerical criterion of each index. (1)FPI(Fire Propagation Index)≤6 (2)SDI(Smoke Damage Index)≤0.4

********************************************************************************************************

5. DATA HANDLING 数据处理

The unit is equipped to store up to 200 test results and export to an optional printer or to a LIMS through an RS-232 port or USB memory.

试验结果可以保存200个，试验结果可以选购打印机打印，也可以通过USB， RS-232将数据导出到LIMS。

6. USB PORT USB接口

A USB port allows connecting USB keyboard for easy entering sample name and connecting USB flash memory for data copy to a PC or test conditions/parameters copy to the tester.

USB接口可以接USB键盘（选购件）用于样品名称的输入，也可以接闪存copy试验参数

6.PASSWORD PROTECTION 密码保护

With setting up password by the administrator， the device is protected against inadvertent change of parameters by the operator.

试验程序有密码保护功能，可以防止误操作

7. ALL-IN ONE DESIGN IN LIGHTWEIGHT 轻盈的一体式设计

The all-in-one design is much lighter than old model， APM-7 by approximately 30%， which is world's smallest class in volume.

比APM-7轻30%左右，也是全球体积*小的宾斯基-马丁闭口杯法闪点试验仪

规格
