D-6000-VN
面议
冀群
D-6000-VN
3452

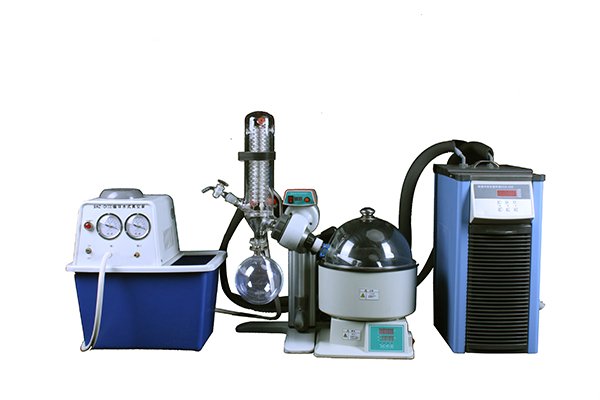

D-6000-VN旋转蒸发仪
D-6000-VN Rotary Evaporator
D-6000-VN型是本厂**研发的新型台式旋蒸,本产品外形新颖美观,转速温度双数显,加热锅采用特氟隆复合材质,全封闭加热模式,防止干烧,水油两用。密封部分采用国外**技术,特氟隆+氟胶双重密封圈,保持持久高真空度。主机采用手动重量平衡方式进行升降,滑动升降100mm+手动升降150mm,可达260mm的升降距离。
D-6000-VN new type desktop rotary evaporator is our latest research and development, this product has novel and beautiful appearance, speed and temperature dual-digital display, the heating pot adopts teflon composite material, fully enclosed heating mode, prevent dry, water and oil are used. Sealing part adopts the latest technology from abroad, teflon + fluorine plastic double-sealing ring, keep sustained high vacuum degree. Host uses manual weight balance methods to lift, sliding lifting 100mm + manual lifting 150mm can reach 260mm lifting distance.
型号Model | D-6000-VN |
玻璃材质Glass material | GG-17 |
支架材质Stent material | 铝合金Aluminium alloy |
锅胆材质Bath material | 铝合金+特氟隆复合锅,全封闭加热 Teflon composite pot, fully enclosed heating |
旋转瓶容积Rotary flask volume | 1L 29#标口standard mouth |
收集瓶容积Collecting flask volume | 1L 35#球磨口ball mill mouth |
旋转功率Rotary power | 40W |
旋转速度Rotary speed | 20-195rpm |
蒸发能力Evaporating ability | 25ml/min(the evaporating capacity of water) |
真空度 Vacuum degree | 0.098Mpa |
加热功率Heating power | 1.5KW |
浴锅控温范围Temperature control of bath | 0-99℃ |
控温精度Temperature precision | ±1℃ |
升降行程Elevating power | 100mm+150mm(sliding lifting+manual lifting) |
电压/频率Voltage/frequency(V/Hz) | 220V/50Hz |
外形尺寸Exterior size(mm*mm*mm) | 550*400*780(1040) |
包装尺寸Packing size(mm*mm*mm) | 720*525*385 |
包装重量Packing weight(KG) | 16 |
