概述   Description

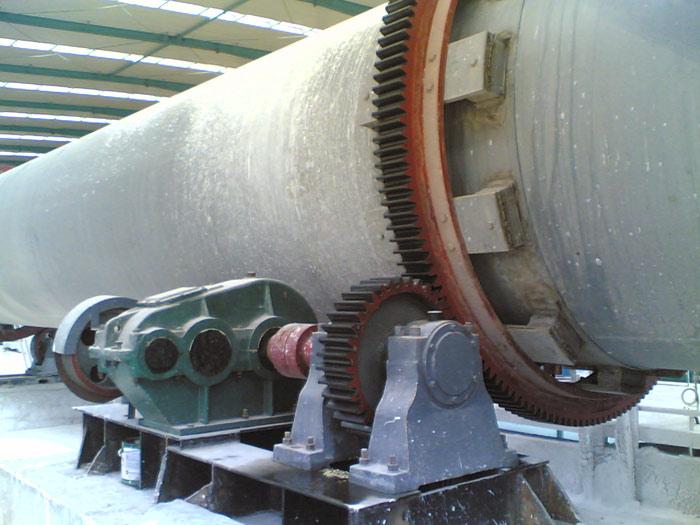

        HZG回转滚筒干燥机是主体略带倾斜并能在一定范围内可调转速的圆筒体，湿物料由加料机送入圆筒内，在内筒均布的抄板器翻动下，物料在干燥器内均匀颁与分散并与通过筒内的热风(并流或逆流)充分接触，加快了干燥传热、传质。从而达到干燥的目的，该设备可选用各种形式抄板来适应不同的物料，结构简单，运转可靠，维修方便，生产能力大。
After the damp raw material is put into the drier from on end, it is turned over through string-up rake inside the cylinder and distributed uniform in the fried and contacted with counter curent hot air fully. It speeds up heat and mass conducting of dry．During the purpose of dry, raw material is effected by stirring-up rake with gradient and hot air, it can be moved and passed through the dry region and then discharge the finished product.
----------------------------------------------------------------------------------------------------------------
应用   Application
       适用于
       1.化工、矿山、冶金等行业大颗粒，比重大物料干燥，如：矿山、高炉矿渣、煤、金属粉末、磷肥、硫铵。
       2.对有特殊要求的粉状、颗粒状物料的干燥，如：Hp发泡剂、酒糟渣、轻质碳酸钙、活性白土、磁粉、石墨、药渣。
       3.要求低温干燥，且需大批量连续干燥的物料。
Applicable for drying big particles, heavy particles in chemical, mining, and metallurgy, such as mining area, cinder of blast furnace, coal, powder of metal, phosphate fertilizer and thiamine. For drying the powder or particles with special requirements, such as HP foaming blowing agent, residule of alcohol, light calcium carbonate, active clay, magnetic powder, graphite, and residue of medicine. For materials to be dried under low temperature and large lot continuous production.
----------------------------------------------------------------------------------------------------------------
技术参数   Technical parameters
　型号model  直接加热顺流式 direct heating clockwise flow spec  直接加热顺流式 direct heating clockwise flow spec  直接加热逆流式 heat directly countercurrent spec  直接加热逆流式 heat directly countercurrent spec  复合加热 complex heat  　复合加热 complex heat
物料种类 kinds of raw material  矿石 ore  Hp发泡剂 vesicant  高炉矿渣 slag of blast furnace  硫铵 ammonium sulphate  磷肥 phosphorus fertilizer
煤 coal
处理量 amount to be treated(Kg/h)  1000  466  15000  20000  12000  5000
初含水量 primary moisture(%)  30  13  6  1.5  5  6.5
终含水量 final moisture(%)  15  0.3  1  0.1  0.1  0.1
平均粒径 average diameter(mm)  6.5  0.05  4.7  0.5-0.7  0.5  5
物料堆积重度  770  800  1890  1100  1500  750
bulk density of rawmaterial kg/m2
热风度amount of hot air (m3/kg)  39000  5400  10750  9800  6500  16000
入口气体温度  600  165  500  180  650  570
temperature of air at inlet(℃)
物料出口温度temperature of raw material at outlet(℃)  　  42  100  70  80  75
加热方式 way of heating  煤气 gas  蒸气式电加热 electric heating  重油 heavy oil  燃煤热风炉coalfuel hot air furnace  重油 heavy oil  重油 heavy oil
装料系数loading  effciency(%)  　  6.3  7  7.5  7.8  18
转速revolution(r.p.m)  4  4  3.5  3  4  2
倾斜度gradient(m/m)  0.04  0.005  0.03  0.05  0.05  0.043
抄板数目quantity of stirring-up rake  　12  　24  　12  　22  内筒外面8外筒内 面16  outer of inner cylinder8inner of outercylinder16
6
12
干燥器直径diameter of dryer(m)  　2  　1.5  　2  　2.3  外筒2内筒0.84 outer cylinder2, inner cylinder0.84  外筒2.4内筒0.95 outer cylinder24, inner cylinder0.95
干燥器长度length of dryer(m)  20  12  17  15  10  16
驱动功率driving  power(kw)  22  7.5  15  11  11  15
