BF型
直接联系
郴州恒达选矿机械厂有限公司
湖南
面议
恒达
BF型
4840
--

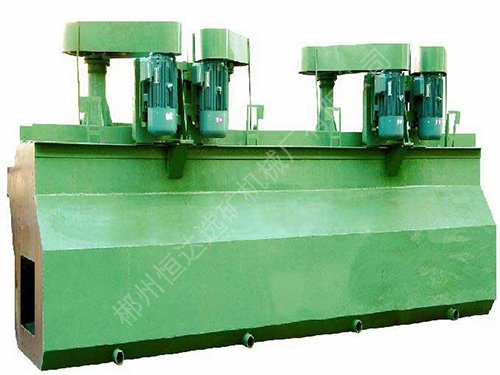

BF型浮选机是SF型浮选机的改进型。其特点：1.叶轮由闭式双截锥体组成，可产生强的矿浆下循环。2.吸气量大、功耗低。3.每槽兼有吸气、吸浆和浮选三重功能，自成浮选回路，不需任何辅助设备，水平配置，便于流和的变更。4.矿浆循环合理，能大限度的减少粗砂沉淀。5.设有矿浆液面自控和电控装置，调节方便。
BF flotation machine is improved on the basis of SF flotation machine.
The features:1.The impeller consists of closed double section cones,
which can produce strong down-circulation.2.Big air inlet amount, low
energy conwumption.3.Eeah trough has the function of air suction, ore
pulp suction and flotation, it can make a flotation circuit itself, with
no auxiliary equipments. The horizontal configuration makes it easy to
change process.4.Rational ore pulp circulation reduces coarse sand
dediment.5.There are automatic and electric control devices of ore
pulplevel, which makes easy adjustment.
主要型号及技术参数:
MAIN MODELS AND TECHNICAL PARAMETERS:
型号 | 单槽有效容积Useful volume of single-slot(m3)) | 单槽槽体尺寸(长×宽×深) (L×W×H)(mm) | 充（吸）气量Air suction amount (m3/min) |
安装功率 |
电动机型号 | 矿浆处理能力Handling ability of pulp(m3/min) | 单槽重量Weight of single-slot(kg) |
BF-0.37 | 0.37 | 740×740×750 | 0.9-1.05 | 1.5 | Y90L-4 | 0.2-04 | 470 |
BF-0.65 | 0.65 | 850×950×900 | 0.9-1.10 | 3.0 | Y132S-6 | 0.3-07 | 932 |
BF-1.2 | 1.2 | 1050×1150×1100 | 1.0-1.10 |
5.5 |
Y132M2-6 | 0.6-1.2 | 1370 |
BF-2.0 | 2.0 | 1400×1450×1120 | 1.0-1.10 | 7.5 | Y160M-6 | 1.0-2.0 | 1750 |
BF-2.8 | 2.8 | 1650×1650×1150 | 0.9-1.10 | 11 | Y180L-8 | 1.4-3.0 | 2130 |
BF-4.0 | 4.0 | 1900×2000×1200 | 0.9-1.10 | 15 | Y200L-8 | 2-4 | 2585 |
BF-6.0 | 6.0 | 2200×2350×1300 | 0.9-1.10 | 18.5 | Y225S-8 | 3-6 | 3300 |
BF-8.0 | 8.0 | 2250×2850×1400 | 0.9-1.10 |
22 |
Y225M-8 | 4-8 | 4130 |
BF-10 | 10 | 2250×2850×1700 | 0.9-1.10 |
22 |
Y225M-8 | 5-10 | 4660 |
BF-16 | 16 | 2850×3800×1700 | 0.9-1.10 |
37 |
Y280S-8 | 8-16 | 8320 |
BF-20 | 20 | 2850×3800×2000 | 0.9-1.10 |
37 |
Y280S-8 | 10-20 | 8670 |
BF-24 | 24 | 3150×4150×2000 | 0.9-1.10 | 45 | Y280M-8 | 12-24 | 8970 |
