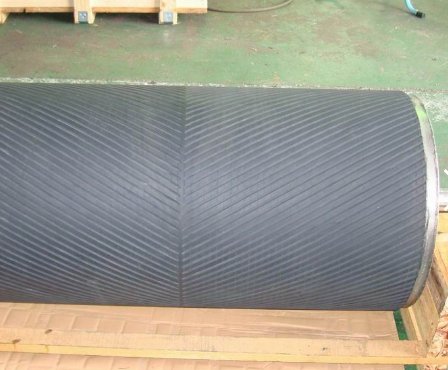

磁性滚轮
860
磁性滚轮
产品描述
磁滚作为头或尾滚安装在现有的传送带系统中,是一种具有成本效益的磁性金属分离器。
磁性滚轮不需要维护,磁滚可以从皮带上传送的材料中自动清除不需要的铁,以防止机械损坏和产品污染。
应用领域
食品,化工,采矿,岩石产品,陶瓷,纸张、木制品等资源回收,煤炭处理和铸造行业.
工作原理
磁滚广泛用作带式输送机中的头辊,用于从各种材料中连续自动去除有害的杂质铁。
磁滚是360°都装有磁铁,形成具有相应旋转磁场的磁系统,该磁场围绕整个圆周有效。磁场吸引物料中的铁磁金属颗粒,并且在磁滚上运行的传送带将这些铁颗粒带到磁滚的的下侧,当铁在磁滚的下侧并离开磁场范围内时,铁就从皮带带上脱落,实现分选效果。
对于强导磁性铁粒子,我们安装刮板进行剥离。磁性滚轮是一个连续的系统,因此不需要停止物料输送系统带走分离的金属颗粒。从而磁滚适合铁含量比较高的物料。
规格表
规格 (公制) 产能是根据表格中滚轮的转速核算的,表格中皮带的速度是推荐的更大的皮带速度,皮带速度降低,产能也会相应的降低,从而确保更好的分选效果。 | 滚轮直径 | 滚轮宽度 mm | 产能 m³/h | 键槽尺寸 宽度*深度*长度 (mm) |
203mm (43 MTR P.M) | 254 | 12.7 | 9.53X4.77X58 | |
305 | 16.4 | 9.53X4.77X58 | ||
356 | 18.1 | 9.53X4.77X58 | ||
406 | 22.6 | 9.53X4.77X58 | ||
457 | 30.3 | 9.53X4.77X58 | ||
508 | 38.8 | 9.53X4.77X58 | ||
559 | 50 | 9.53X4.77X58 | ||
660 | 68 | 9.53X4.77X58 | ||
813 | 114 | 9.53X4.77X58 | ||
965 | 161 | 9.53X4.77X58 | ||
305mm (64 MTR P.M) | 356 | 27 | 12.7X6.3X63.5 | |
406 | 34 | 12.7X6.3X63.5 | ||
457 | 45 | 12.7X6.3X63.5 | ||
508 | 64 | 12.7X6.3X63.5 | ||
559 | 77 | 12.7X6.3X63.5 | ||
660 | 102 | 12.7X6.3X63.5 | ||
813 | 170 | 12.7X6.3X63.5 | ||
965 | 242 | 12.7X6.3X63.5 | ||
1118 | 306 | 12.7X6.3X63.5 | ||
1295 | 428 | 12.7X6.3X63.5 | ||
381mm (73 MTR P.M) | 356 | 30 | 15.88X7.94X76 | |
406 | 39 | 15.88X7.94X76 | ||
457 | 53 | 15.88X7.94X76 | ||
508 | 77 | 15.88X7.94X76 | ||
559 | 88 | 15.88X7.94X76 | ||
660 | 116 | 15.88X7.94X76 | ||
813 | 195 | 15.88X7.94X76 | ||
965 | 276 | 15.88X7.94X76 | ||
1118 | 349 | 15.88X7.94X76 | ||
1295 | 489 | 15.88X7.94X76 | ||
457mm (82 MTR P.M) | 356 | 34 | 15.88X7.94X76 | |
406 | 44 | 15.88X7.94X76 | ||
457 | 62 | 15.88X7.94X76 | ||
508 | 87 | 15.88X7.94X76 | ||
559 | 105 | 19.05X9.53X76 | ||
660 | 132 | 19.05X9.53X76 | ||
813 | 219 | 19.05X9.53X76 | ||
965 | 310 | 19.05X9.53X76 | ||
1118 | 394 | 19.05X9.53X76 | ||
1295 | 550 | 19.05X9.53X76 | ||
508mm (91 MTR P.M) | 406 | 48 | 19.05X9.53X76 | |
457 | 68 | 19.05X9.53X76 | ||
508 | 96 | 19.05X9.53X76 | ||
559 | 116 | 19.05X9.53X76 | ||
660 | 145 | 19.05X9.53X76 | ||
813 | 244 | 19.05X9.53X76 | ||
965 | 345 | 19.05X9.53X76 | ||
1118 | 436 | 19.05X9.53X76 | ||
1295 | 615 | 19.05X9.53X76 | ||
1448 | 810 | 19.05X9.53X76 | ||
1600 | 1050 | 19.05X9.53X76 | ||
610mm (104 MTR P.M) | 406 | 57 | 19.05X9.53X76 | |
457 | 77 | 19.05X9.53X76 | ||
508 | 125 | 19.05X9.53X76 | ||
559 | 132 | 19.05X9.53X76 | ||
660 | 166 | 19.05X9.53X76 | ||
813 | 280 | 22.23X11.11X76 | ||
965 | 460 | 22.23X11.11X76 | ||
1118 | 500 | 25.4X12.7X76 | ||
1295 | 700 | 25.4X12.7X76 | ||
1448 | 920 | 25.4X12.7X76 | ||
1600 | 1200 | 25.4X12.7X76 | ||
762mm (122 MTR P.M) | 508 | 130 | 25.4X12.7X76 | |
559 | 155 | 25.4X12.7X76 | ||
660 | 195 | 25.4X12.7X76 | ||
813 | 325 | 31.75X15.88X89 | ||
965 | 460 | 31.75X15.88X89 | ||
1118 | 585 | 31.75X15.88X89 | ||
1295 | 815 | 31.75X15.88X89 | ||
1448 | 1071 | 31.75X15.88X89 | ||
1600 | 1071 | 31.75X15.88X89 | ||
914mm (134 MTR P.M) | 508 | 145 | 25.4X12.7X76 | |
559 | 175 | 25.4X12.7X76 | ||
660 | 215 | 31.75X15.88X89 | ||
813 | 360 | 31.75X15.88X89 | ||
965 | 510 | 31.75X15.88X89 | ||
1118 | 640 | 31.75X15.88X89 | ||
1295 | 900 | 31.75X15.88X89 | ||
1448 | 1180 | 31.75X15.88X89 | ||
1600 | 1540 | 31.75X15.88X89 |
服务
免费物料测试
根据测试结果和工作环境提供设计方案
