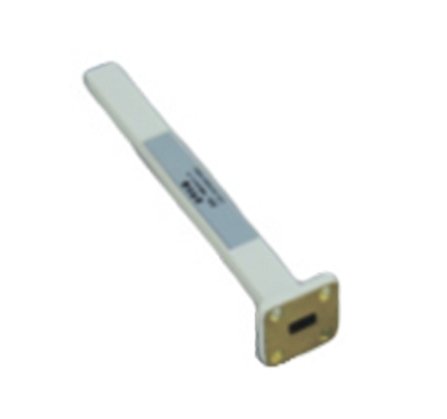

矩形波导匹配负载
直接联系
成都欧拉微波元器件有限公司
四川
面议
成都欧拉
矩形波导匹配负载
109
产品型号 | 波导规格 | 频率（GHz） | 平均功率(W) | 峰值功率(W) | 长度A（mm） | VSWR |
TMWG3PLA10 | BJ3(WR2300) | 0.32-0.49 | 25 | 25 | 2005 | 1.02 |
TMWG4PLA10 | BJ4(WR2100) | 0.35-0.53 | 25 | 25 | 1900 | 1.02 |
TMWG5PLA10 | BJ5(WR1800) | 0.41-0.62 | 25 | 25 | 1600 | 1.02 |
TMWG9PLA10 | BJ9(WR975) | 0.75-1.15 | 25 | 25 | 660 | 1.02 |
TMMG12PLA10 | BJ12(WR770) | 0.96-1.46 | 25 | 25 | 680 | 1.02 |
TMWG14PLA10 | BJ14(WR650) | 1.13-1.73 | 25 | 25 | 320 | 1.02 |
TMWG18PLA10 | BJ18(WR510） | 1.45-2.2 | 25 | 250 | 320 | 1.02 |
TMWG22PLA10 | BJ22(WR430) | 1.7-2.61 | 15 | 15 | 280 | 1.02 |
TMWG26PLA10 | BJ26(WR340) | 2.17-3.3 | 12 | 12 | 275 | 1.02 |
TMWG32PLA10 | BJ32(WR284) | 2.6-3.95 | 10 | 10 | 275 | 1.02 |
TMWG40PLA10 | BJ40(WR229) | 3.22-4.9 | 10 | 10 | 190 | 1.02 |
TMWG48PLA10 | BJ48(WR187) | 3.94-5.99 | 8 | 8 | 160 | 1.02 |
TMWG58PLA10 | BJ58(WR159) | 4.64-7.05 | 7 | 7 | 155 | 1.02 |
TMWG70PLA10 | BJ70(WR137) | 5.38-8.17 | 6 | 6 | 140 | 1.02 |
TMWG84PLA6 | BJ84(WR112) | 6.57-9.99 | 4 | 4 | 130 | 1.02 |
TMWG100PLA6 | BJ100(WR90) | 8.2-12.4 | 4 | 7 | 100 | 1.02 |
TMWG120PLA6 | BJ120(WR75) | 9.84-15 | 2 | 2 | 100 | 1.02 |
TMWG140PLA6 | BJ140(WR62) | 11.9-18 | 1.5 | 1.5 | 100 | 1.02 |
TMWG180PLC6 | BJ180(WR51) | 14.5-22 | 1 | 1 | 100 | 1.02 |
TMWG220PLC6 | BJ220(WR42) | 17.6-26.7 | 0.5 | 0.5 | 65 | 1.02 |
TMWG260PLC6 | BJ260(WR34) | 21.7-33 | 0.5 | 0.5 | 65 | 1.02 |
TMWG320PLC6 | BJ320(WR28) | 26.5-40 | 0.5 | 0.5 | 50 | 1.02 |
TMWG400PLC12 | BJ400(WR22) | 32.9-50.1 | 0.5 | 0.5 | 50 | 1.05 |
TMWG500PLC12 | BJ500(WR19) | 39.2-59.6 | 0.4 | 0.4 | 50 | 1.05 |
TMWG620PLC12 | BJ620(WR15) | 49.8-75.8 | 0.4 | 0.4 | 50 | 1.05 |
TMWG740PLC12 | BJ740(WR12) | 60.5-91.9 | 0.4 | 0.4 | 50 | 1.2 |
TMWG900PLC12 | BJ900(WR10) | 73.8-112 | 0.4 | 0.4 | 50 | 1.25 |
