DMF-Y型
面议
OMTON
DMF-Y型
1464
一、产品简介:

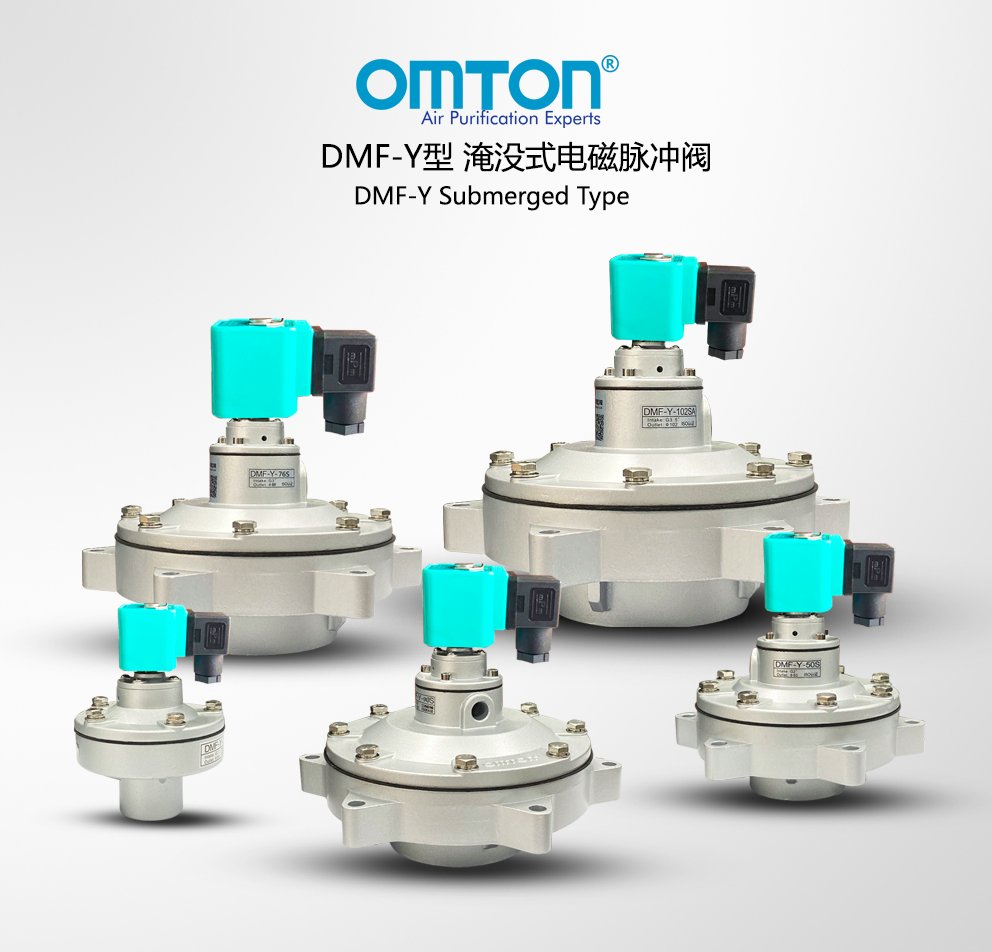

DMF-Y型电磁脉冲阀直接安装在分气箱(气包)上,称为淹没式(也称嵌入式)低压阀,输出口通过连接管延伸至分气箱与除尘器喷吹管相连,具有流通性好,压力损失小,能在气源压力较低的场合提供理想的清灰脉冲气流,适用于各种过滤单元的清灰。
二、型号含义
三、安装示意图:
四、规格尺寸:
五、安装方法
七、电磁脉冲阀常见问题:
使用阶段 Stage of use | 故障现象 Fault | 原因分析 Cause analysis | 排除方法 Eliminating method |
安装调试中 Installation and Commissioning | 所有阀无法打开,但先导部分有动作 Not all the valves can be opened,but the pilot part is running | 检查气包压力是否过低 Check whether the air tank pressure is too low | 排查漏气 Check and prevent air leakage |
某些阀不工作,其他阀正常 Some valves cannot run while others can | 检查阀的线路连接及线圈 Check the line connections and sole-noids of the valves | 更换配件 Replace relevant parts | |
所有阀无法关闭,有漏气,气包压力无法建立 Not all the valves can be closed;there is air leakage; the air tank pressure cannot be established | 阀的进气口与喷吹口相反安装 The air inlets and air outlets of the valves are reversely Installed | 重新安装 Install the valves again | |
有电压,但阀不动作 There is voltage but the valves cannot run | 膜片损坏或节流孔受堵 Diaphragm is damaged, pilot opening is blocked | 及时更换配件 Replace relevant parts promptly | |
环境温度低,阀有漏气或无法打开 The ambient temperature is low; the valves leak or cannot be opened | 环境温度过低,阀内有结冰现象 Ambient air temperature too low valve intelnal frozen | 注意保温 Keep a properly high temperature |
