3QGB
直接联系
泊头市茁博机械厂
河北
1万元以下
3QGB
1626

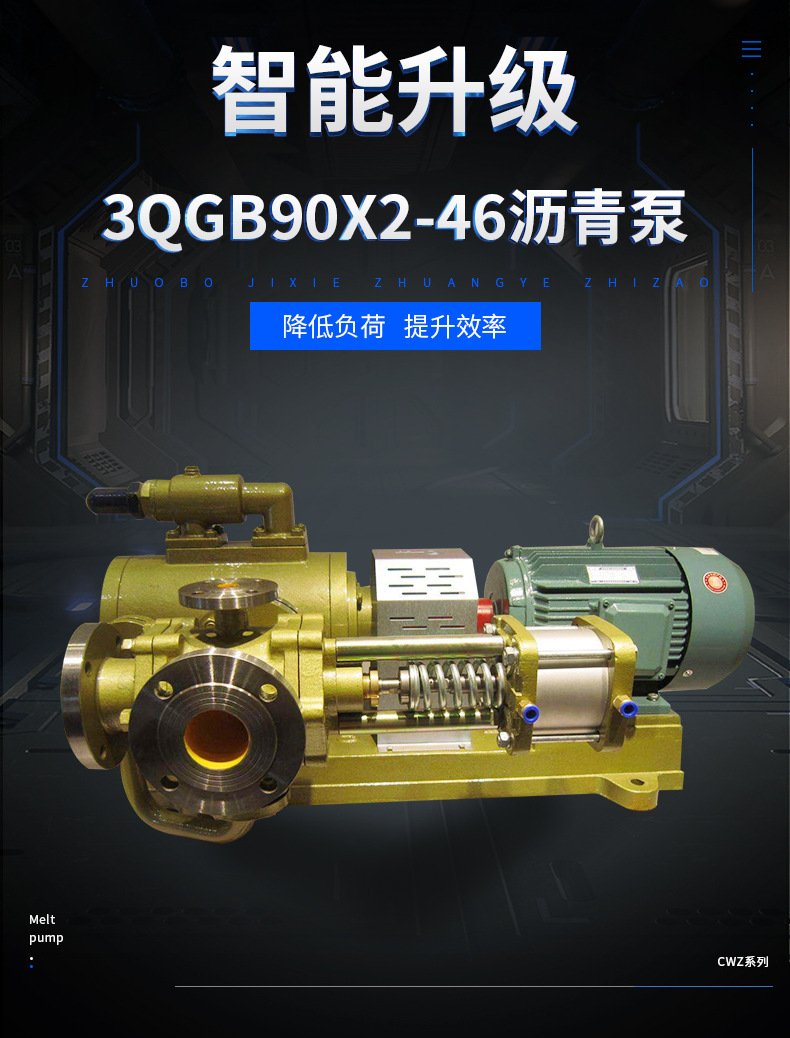

3QGB系列三螺杆泵是一种容积式泵，显著的优点是结构简单、体积小、允许高转速工作平稳、压力脉动小、流量稳定、噪音低、。正是利用螺杆啮合原理，依靠旋转的螺杆在泵套内相互啮合，把被输送的介质封闭在啮合腔内，沿螺杆轴向连续匀速地推至排出口，为系统提供稳定的压力。
三螺杆泵适用千输送各种无腐蚀性油类及类似油的液体，输送液体的粘度一般为3 0～760mm2／s。高粘度介质可通过加温降粘后输送，其温度一般不超过350。C。
3QGB系列三螺杆泵采用铸钢制成，有保温和不带保温两种，建议高粘度介质采用保温结构的螺杆泵。泵的进出口方向，在通常情况下按图示方向出厂即右进左出。如用户有要求也可做成左进右出。
该泵密封性能好，采用机械密封，根据用户不同的介质，机械密封磨擦件选用不同的材质，对于高粘度介质，选用机械、好的硬质合金材料，了高温下的密封性能。
3G系列三螺杆泵用途：用来输送温度≤150℃、粘度3-760cSt、不含固体颗粒、无腐蚀性、具有润滑性能的介质。适用压力范围：0.6-2.5Mpa; 适用流量范围:0.6-123m3/h。主要应用于燃油输送、液压工程、船舶工程，石化及其他工业。
结构形式：一般采用机械密封。泵通过爪型联轴器由电动机驱动。从主轴外伸端向泵年，为顺时针旋转。 材 质：主、从螺杆16MnCrS5,40Cr,45,38CrMoALA 泵体：HT200,QT450-10,ZCuSn10Pl,ZG270-50
型号 | 流量 | 出口压力 | 转速 | 功率KW | 汽 | 电机型号 | ||
m3/h | L/min | 轴功率 | 电机功率 | |||||
45×3-36 | 2.8 | 46 | 0.6 | 950 | 0.8 | 1.1 | 5 | 90L-6-B3 |
2.7 | 45 | 1 | 1.2 | 1.5 | 100L-6-B3 | |||
25 | 42 | 1.6 | 1.6 | 2.2 | 112M-6-B3 | |||
2.4 | 40 | 2.5 | 2.8 | 4 | 132M1-6-B3 | |||
4.2 | 70 | 0.6 | 1450 | 1 | 1.5 | 5 | 90L-4-B3 | |
4 | 66 | 1 | 1.7 | 2.2 | 100L1-4-B3 | |||
3.8 | 63 | 1.6 | 2.8 | 3 | 100L3-4-B3 | |||
3.5 | 58 | 2.5 | 4.3 | 5.5 | 132S-4-B3 | |||
45×2-46 | 4.2 | 70 | 0.6 | 950 | 1 | 1.5 | 5 | 100L-6-B3 |
4 | 66 | 1 | 1.7 | 2.2 | 112M-6-B3 | |||
6.3 | 105 | 0.6 | 1450 | 1.5 | 2.2 | 100L1-4-B3 | ||
6.1 | 101 | 1 | 2.3 | 3 | 100L2-4-B3 | |||
54×2-46 | 8 | 133 | 0.8 | 970 | 2.3 | 3 | 5 | 100L-6-B3 |
8 | 133 | 1 | 1.5 | 2.2 | 112M-6-B3 | |||
14 | 233 | 0.6 | 1450 | 2.8 | 4 | 100L1-4-B3 | ||
14 | 233 | 4 | 4.3 | 5.5 | 100L2-4-B3 | |||
62×2-43 | 8.58 | 143.4 | 0.6 | 950 | 2.06 | 3 | 5 | 132S-6-B3 |
8.25 | 137.9 | 1 | 3.18 | 4 | 132M1-6-B3 | |||
13.1 | 218.9 | 0.6 | 1450 | 3.15 | 4 | 112M-4-B3 | ||
12.6 | 210.5 | 1 | 4.86 | 7.5 | 132M-4-B3 | |||
62×2-46 | 9.8 | 163 | 0.8 | 950 | 2.9 | 4 | 5 | 132M1-6-B3 |
9.5 | 158 | 1 | 3.6 | 5.5 | 132M2-6-B3 | |||
15.1 | 251 | 0.6 | 1450 | 3.6 | 5.5 | 132S-4-B3 | ||
14.6 | 243 | 1 | 5.5 | 7.5 | 132M-4-B3 | |||
80×2-36 | 17 | 283.3 | 0.8 | 950 | 4.3 | 7.5 | 5.5 | 160M-6-B3 |
25.7 | 428 | 0.6 | 1450 | 5.4 | 7.5 | 132M-4-B3 | ||
25 | 417 | 1 | 8.5 | 11 | 160M-4-B3 | |||
80×2-46 | 23.9 | 398.5 | 0.6 | 950 | 5.5 | 7.5 | 5.5 | 160M-6-B3 |
23.1 | 386.3 | 1 | 8.6 | 11 | 160L-6-B3 | |||
36.6 | 610.3 | 0.6 | 1450 | 8.4 | 11 | 160M-4-B3 | ||
35.7 | 594.5 | 1 | 13.1 | 15 | 160L-4-B3 | |||
80×2-51 | 27.5 | 485.5 | 0.6 | 950 | 6.3 | 11 | 5.5 | 160L-6-B3 |
26.9 | 448.3 | 1 | 10.5 | 15 | 180L-6-B3 | |||
41.9 | 698.3 | 0.6 | 1450 | 9.6 | 11 | 160M-4-B3 | ||
41 | 684.1 | 1 | 16 | 18.5 | 180M-4-B3 | |||
90×2-36 | 24.2 | 403.5 | 0.6 | 960 | 5.52 | 7.5 | 5.5 | 160M-6-B3 |
23.6 | 394.6 | 1 | 8.52 | 11 | 160L-6-B3 | |||
37 | 615.9 | 0.6 | 1450 | 8.52 | 11 | 160M-4-B3 | ||
36.1 | 602.4 | 1 | 13 | 15 | 160L-4-B3 | |||
90×2-42 | 28.2 | 470.9 | 0.6 | 950 | 6.6 | 11 | 5.5 | 160L-6-B3 |
27.5 | 457.6 | 1 | 10.2 | 15 | 180L-6-B3 | |||
43.1 | 718.8 | 0.6 | 1450 | 10 | 15 | 160L-4-B3 | ||
41.9 | 698.5 | 1 | 15.5 | 18.5 | 180M-4-B3 | |||
90×2-46 | 34 | 566.7 | 0.8 | 950 | 9.7 | 11 | 5.5 | 160L-6-B3 |
52.6 | 875.4 | 0.6 | 1450 | 12 | 15 | 160L-4-B3 | ||
52 | 866 | 0.8 | 14.9 | 18.5 | 180M-4-B3 | |||
51.4 | 856.1 | 1 | 18.6 | 22 | 180L-4-B3 | |||
100×2-46 | 48 | 800 | 0.8 | 950 | 13.3 | 15 | 5.5 | 180L-6-B3 |
72.7 | 1212 | 0.6 | 1450 | 16.5 | 18.5 | 180M-4-B3 | ||
72 | 1200 | 0.8 | 20.4 | 22 | 180L-4-B3 | |||
71.2 | 1187 | 1 | 25.5 | 30 | 200L-4-B3 | |||
100×2-51 | 56.9 | 948.9 | 0.6 | 950 | 12.5 | 15 | 5.5 | 180L-6-B3 |
55.7 | 928.6 | 1 | 20.8 | 30 | 225L-6-B3 | |||
86.9 | 1448.3 | 0.6 | 1450 | 19.1 | 22 | 180L-4-B3 | ||
85 | 1417.2 | 1 | 31.8 | 37 | 225S-4-B3 | |||
110×2-46 | 60.9 | 1015 | 0.6 | 950 | 13.7 | 18.5 | 5.5 | 200L1-6-B3 |
58.9 | 951.7 | 1 | 21.8 | 30 | 255M-6-B3 | |||
96.7 | 1611 | 0.6 | 1450 | 21.9 | 30 | 200L-4-B3 | ||
94.6 | 1577 | 1 | 33.9 | 45 | 255M-4-B3 | |||
120×2-42 | 67.9 | 1131 | 0.6 | 950 | 15.5 | 18.5 | 5.5 | 200L1-6-B3 |
65.4 | 1090 | 1 | 24.5 | 30 | 255M-6-B3 | |||
108 | 1802 | 0.6 | 1450 | 24.7 | 30 | 200L-4-B3 | ||
105 | 1760 | 1 | 38.2 | 45 | 255M-4-B3 | |||
120×2-46 | 79.6 | 1327 | 0.6 | 950 | 17.8 | 22 | 5.5 | 200L1-6-B3 |
77.2 | 1285 | 1 | 28.2 | 37 | 250M-6-B3 | |||
126 | 2101 | 0.6 | 1450 | 28.5 | 37 | 225S-4-B3 | ||
123 | 2059 | 1 | 44.1 | 55 | 255M-4-B3 | |||
150×2-46 | 158 | 2640 | 0.6 | 950 | 34.6 | 45 | 5.5 | Y280S-6-B3 |
154 | 2582 | 1 | 54.5 | 75 | Y315S-6-B3 | |||
241.7 | 4029.7 | 0.6 | 1450 | 53.8 | 75 | Y280S-4-B3 | ||
236.5 | 3942.2 | 1 | 82.2 | 90 | Y280M-4-B3 | |||
