ZCPY-15BSX
直接联系
西安秉控流体技术有限公司
西安
1万元以下
ZCPY-15BSX
1344

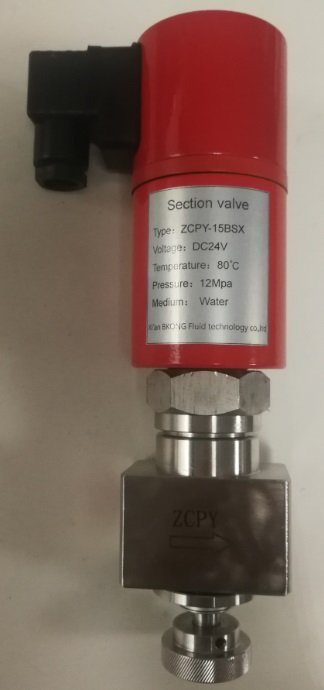

ZCPY船舶细水雾高压电磁施放阀
| 公称通径 | DN15 | 公称压力 | 12MPa |
| 电源电压 | DC24V | 介质种类 | 水 |
| 流体温度 | 0—100℃ | 环境温度 | 0—60℃ |
| 阀体材质 | 不锈钢 | 密封材料 | FKM |
| 控制方式 | 常闭型 | 自带功能 | 手动、信号反馈 |
| 备注 | ZCPY主要应用于船上的细水雾消防系统 阀体+接头总长96mm（可根据现场工况定制） | ||
The section valve arrangement consists of a high-pressure electrically operated solenoid valve vith manually emergent operation function.
The section valves can be operated locally at or near the section valve arrangement, or eventually at the objects protected,by pressing a "Release Water mist System" push-button.
The section valves can also be operated frome the Valve Operating Panel.
Type:ZCPY 24V
Working presure:12MPA
Max. Flow:120L/min
Max.Working temperature:+80℃
Protection class:IP56
