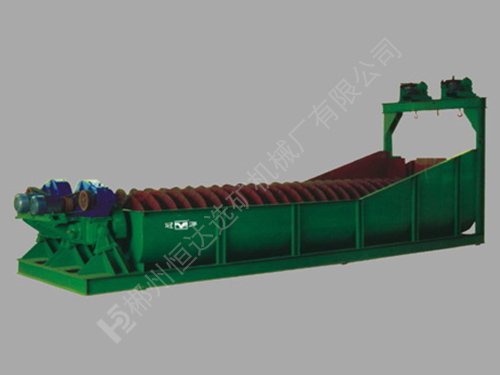

螺旋分级机具有结构简单、工作可靠、操作方便等优点，是选矿厂中应用广的分级设备之一。它主要用于湿式磨矿回路中的预选分级和检查分级, 也可用作洗矿作业中的脱泥、脱水。
螺旋分级机按其螺旋轴的数目可分为单螺旋和双螺旋分级机；按其溢流堰的高度以可分为高堰式、沉没式、低堰式。
我厂可根据客户的要求生产标准型、加长型螺旋分级机。螺旋分级机有左、右式之分，订货时须注明。
Spiral classifier is simple, reliable, easy to use, etc. ,which is the
most widely used classification equipment .in the concentrator .It is
mainly used for pre-classification and grading inspection in the wet
grinding circuit. It can also be used to wash off the mud, and
dehydration in ore-dressing practice.
Spiral classifier according to the number of screw shaft can be
divided into single-and duplex-spiral classifier; according to a high
degree of the overflow weir can be divided into high-weir, sank-and
low-weir.
Our company is able to according to the requirements of customers and produce standard, extended-spiral classifier.
FG高堰式（单、双）螺旋分级机主要型号及技术参数：
THE MAIN MODELS AND TECHNICAL PARAMETERS HIGH WEIR(SINGLE,DUPLEX) SPIRAL CLASSIFIER：
|
型号 |
螺 旋 |
水槽 Sink |
电机功率 |
处理能力 |
外形尺寸 |
重量Weight |
|||
|
直径Diameter |
转速Rev |
长×宽Length×Width |
提升 |
传动 |
溢流量Spillway discharge |
返砂量The capability of returning sand |
|||
|
2FG-12 |
1200 |
6 |
7500×2614 |
2×2.2 |
2×5.5 |
13 |
90-150 |
8990×2790×3130 |
16.3 |
|
2FG-15 |
1500 |
6 |
8300×3230 |
2×2.2 |
2×11 |
15.4 |
140-220 |
10410×3390×4080 |
22.1 |
|
2FG-20 |
2000 |
5.5 |
8400×4230 |
2×3 |
2×15 |
27 |
208-496 |
10540×4600×4490 |
35.5 |
|
2FG-24 |
2400 |
3.6 |
9130×5084 |
2×3 |
2×15 |
46 |
550 |
12710×5430×5690 |
45.8 |
|
FG-3 |
300 |
8-13 |
3500×400 |
手动 |
1.5 |
1.3 |
2.3-8.7 |
4480×750×920 |
0.8 |
|
FG-5 |
500 |
8-13 |
4500×544 |
手动 |
1.5 |
1.3 |
2.3-8.7 |
5530×850×1200 |
1.6 |
|
FG-7 |
750 |
5-12 |
5500×830 |
手动 |
3 |
2.5 |
14.2-23.7 |
6730×1270×1580 |
2.82 |
|
FG-10 |
1000 |
3-9 |
6500×1100 |
手动 |
5.5 |
4.6 |
28-45 |
7890×1270×1950 |
4.3 |
|
FG-12 |
1200 |
5-8 |
7500×1360 |
2.2 |
5.5 |
6.3 |
48-78 |
8990×1570×3130 |
9.7 |
|
FG-15 |
1500 |
4-6 |
8300×1676 |
2.2 |
7.5 |
9.5 |
76-114 |
10410×1850×4080 |
12.5 |
|
FG-20 |
2000 |
5.5 |
8400×2200 |
3 |
15 |
17 |
134-248 |
10540×2400×4490 |
20.5 |
|
FG-24 |
2400 |
3.6 |
9130×2600 |
3 |
15 |
24 |
283 |
11460×2910×5690 |
26 |
|
FG-30 |
3000 |
3.2 |
12500×3200 |
4 |
22 |
37 |
480 |
16020×3530×6350 |
43 |
FC沉没式（单、双）螺旋分级机主要型号及技术参数：
THE MAIN MODELS AND TECHNICAL PARAMETERS SINKING （SINGLE，DUPLEX） SPIRAL CLASSIFIER：
|
型号 |
螺 旋 |
水槽 Sink |
电机功率 |
处理能力 |
外形尺寸 |
重量Weight |
|||
|
直径Diameter |
转速Rev |
长×宽Length×Width |
提升 |
传动 |
溢流量Spillway discharge |
返砂量The capability of returning sand |
|||
|
2FC-12 |
1200 |
6 |
8400×2614 |
2×2.2 |
2×7.5 |
13 |
90-150 |
10370×2790×3920 |
17.6 |
|
2FC-15 |
1500 |
6 |
10500×3230 |
2×2.2 |
2×7.5 |
15.4 |
140-220 |
12670×3390×4890 |
30.7 |
|
2FC-20 |
2000 |
5.5 |
12900×4230 |
2×3 |
2×15 |
27 |
208-496 |
15760×4600×5640 |
48.7 |
|
2FC-24 |
2400 |
3.6 |
14130×5084 |
2×3 |
2×17.5 |
37 |
550 |
17710×5430×8000 |
67.9 |
|
FC-10 |
1000 |
3-9 |
8400×1100 |
手动 |
7.5 |
3.5 |
28-45 |
9900×1270×2250 |
6 |
|
FC-12 |
1200 |
5-8 |
8400×1360 |
2.2 |
7.5 |
6.3 |
48-78 |
10370×1570×3920 |
11 |
|
FC-15 |
1500 |
4-6 |
10500×1676 |
2.2 |
7.5 |
7.7 |
76-114 |
12670×1850×4890 |
16.8 |
|
FC-20 |
2000 |
5.5 |
12900×2200 |
3 |
15 |
13.3 |
134-248 |
15610×2400×5340 |
28.5 |
|
FC-24 |
2400 |
3.6 |
14130×2600 |
4 |
18.5 |
20.4 |
283 |
16580×2910×7190 |
41 |
|
FC-30 |
3000 |
3.2 |
14300×3200 |
4 |
22 |
33 |
480 |
17090×3530×8680 |
50 |
