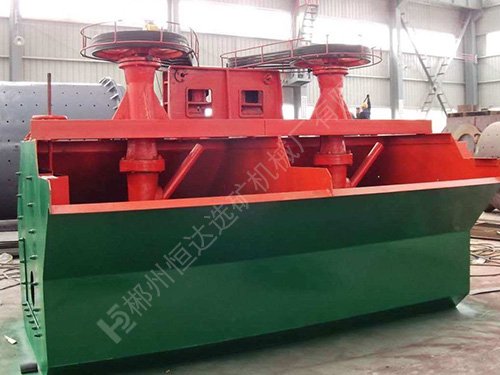

SF型浮选机于1985年研制成功。适用于分离有色金属、黑色金属、贵金属、非金属矿物和化工原料回收有用矿物。SF型浮选机采用了结构新颖的前倾式槽体，双叶片水轮，配有导流管和假底装置，槽内矿浆按固定的流动方式进行上、下双循环，有利于粗粒矿物的悬浮，可自吸矿浆，不需要泡沫泵。
SF-flotation machine is made in 1985 successfully. It is applicable to
the separation of non-ferrous metal, ferrous metals, precious metals,
non-metallic minerals and recovery useful mineral from raw chemicals
materials. SF-flotation machine using a novel structure forward-slot and
dual-blade waterwheel, deploy honeycomb duct and false bottom devices.
The pulp in the slot bicirculated up and down at a fixed flow which is
in favor of coarse-grained mineral suspension, and can self feed the
pulp, and do not need foam pump.
主要型号及技术参数：
MAIN MODELS AND TECHNICAL PARAMETERS:
|
参数名称 |
浮 选 机 型 号Model and specification 0f flotation |
|||||
|
SF0.37 |
SF0.65 |
SF1.2 |
SF2.8 |
SF4 |
SF8 |
|
|
单槽有效容积Useful volume of single-slot(m3) |
0.37 |
0.65 |
1.2 |
2.8 |
4 |
8 |
|
矿浆处理能力Handling ability of pulp(m3/min) |
0.2-0.4 |
0.35-1 |
0.6-1.6 |
1.5-3.5 |
2-4 |
4-8 |
|
叶轮直径Impeller diameter(mm) |
280 |
300 |
450 |
550 |
650 |
760 |
|
叶轮转速Impeller rev(r/min) |
380 |
400 |
320 |
268 |
220 |
191 |
|
充（吸）气量Air suction amount(m3/min) |
0.8-1 |
0.9-1 |
0.9-1.1 |
1-1.2 |
1-1.2 |
1-1.5 |
|
括板电动机Scraper motor(kw) |
Y801-4 |
Y801-4 |
Y90S-4 |
Y100L1-4 |
Y100L1-4 |
Y100L1-4 |
|
括板减速机 |
WD78-40 |
WD78-40 |
WD82-30 |
WD123-30 |
WD123-30 |
WD123-30 |
|
刮板转速Scraper rev(r/min) |
17.5 |
17.5 |
17.5 |
28 |
28 |
28 |
|
主轴电动机Spindle drive motor(kw) |
Y100L-4 |
Y132M1-6 |
Y132M2-6 |
Y180L-8 |
Y200L-8 |
Y250M-8 |
|
2.2 |
4 |
5.5 |
11 |
15 |
30 |
|
|
单槽重量Weight of single-slot(kg) |
470 |
930 |
1370 |
2130 |
2580 |
4130 |
|
单槽槽体尺寸(长×宽×深)Measurement of single-slot body |
700× |
900× |
1100× |
1700× |
1850× |
2200× |
主要型号及技术参数：
MAIN MODELS AND TECHNICAL PARAMETERS:
|
型号 |
单槽有效容积Useful volume of single-slot(m3)) |
矿浆处理能力Handling ability of pulp(m3/min) |
叶轮直径Impeller diameter(mm) |
叶轮转速Impeller rev(r/min) |
主轴电动机Spindle drive motor(kw) |
括板电动机Scraper motor(kw) |
单槽重量Weight of single-slot(kg)） |
单槽槽体尺寸(长×宽×深)Measurement of single-slot body |
|
SF-0.37 |
0.37 |
0.2-0.4 |
300 |
352-442 |
1.5 |
0.55 |
470 |
700× |
|
SF-0.7 |
0.7 |
0.3-1.0 |
350 |
336 |
3 |
1.1 |
930 |
900× |
|
SF-1.2 |
1.2 |
0.6-1.6 |
450 |
298 |
5.5 |
1.4 |
1370 |
1100× |
|
SF-2.8 |
2.8 |
1.5-3.5 |
550 |
268 |
11 |
1.5 |
2130 |
1700× |
|
SF-4 |
4 |
2-4 |
650 |
305 |
15 |
2.2 |
2580 |
1850× |
|
SF-8 |
8 |
4-8 |
760 |
191 |
30 |
2.2 |
4130 |
2200× |
|
SF-10 |
10 |
5-10 |
760 |
191 |
30 |
3 |
4500 |
|
|
SF-16 |
16 |
8-16 |
850 |
169 |
45 |
3 |
8320 |
|
|
SF20 |
20 |
10-20 |
850 |
169 |
45 |
3 |
9823 |
BF型浮选机
BF FLOTATION MACHINE
BF型浮选机是SF型浮选机的改进型。其特点：1.叶轮由闭式双截锥体组成，可产生强的矿浆下循环。2.吸气量大、功耗低。3.每槽兼有吸气、吸浆和浮选三重功能，自成浮选回路，不需任何辅助设备，水平配置，便于流和的变更。4.矿浆循环合理，能大限度的减少粗砂沉淀。5.设有矿浆液面自控和电控装置，调节方便。
BF flotation machine is improved on the basis of SF flotation machine.
The features:1.The impeller consists of closed double section cones,
which can produce strong down-circulation.2.Big air inlet amount, low
energy conwumption.3.Eeah trough has the function of air suction, ore
pulp suction and flotation, it can make a flotation circuit itself, with
no auxiliary equipments. The horizontal configuration makes it easy to
change process.4.Rational ore pulp circulation reduces coarse sand
dediment.5.There are automatic and electric control devices of ore
pulplevel, which makes easy adjustment.
主要型号及技术参数：
MAIN MODELS AND TECHNICAL PARAMETERS:
|
型号 |
单槽有效容积Useful volume of single-slot(m3)) |
单槽槽体尺寸(长×宽×深) (L×W×H)(mm) |
充（吸）气量Air suction amount(m3/min) |
安装功率 |
电动机型号 |
矿浆处理能力Handling ability of pulp(m3/min) |
单槽重量Weight of single-slot(kg) |
|
BF-0.37 |
0.37 |
740×740×750 |
0.9-1.05 |
1.5 |
Y90L-4 |
0.2-04 |
470 |
|
BF-0.65 |
0.65 |
850×950×900 |
0.9-1.10 |
3.0 |
Y132S-6 |
0.3-07 |
932 |
|
BF-1.2 |
1.2 |
1050×1150×1100 |
1.0-1.10 |
5.5 |
Y132M2-6 |
0.6-1.2 |
1370 |
|
BF-2.0 |
2.0 |
1400×1450×1120 |
1.0-1.10 |
7.5 |
Y160M-6 |
1.0-2.0 |
1750 |
|
BF-2.8 |
2.8 |
1650×1650×1150 |
0.9-1.10 |
11 |
Y180L-8 |
1.4-3.0 |
2130 |
|
BF-4.0 |
4.0 |
1900×2000×1200 |
0.9-1.10 |
15 |
Y200L-8 |
2-4 |
2585 |
|
BF-6.0 |
6.0 |
2200×2350×1300 |
0.9-1.10 |
18.5 |
Y225S-8 |
3-6 |
3300 |
|
BF-8.0 |
8.0 |
2250×2850×1400 |
0.9-1.10 |
22 |
Y225M-8 |
4-8 |
4130 |
|
BF-10 |
10 |
2250×2850×1700 |
0.9-1.10 |
22 |
Y225M-8 |
5-10 |
4660 |
|
BF-16 |
16 |
2850×3800×1700 |
0.9-1.10 |
37 |
Y280S-8 |
8-16 |
8320 |
|
BF-20 |
20 |
2850×3800×2000 |
0.9-1.10 |
37 |
Y280S-8 |
10-20 |
8670 |
|
BF-24 |
24 |
3150×4150×2000 |
0.9-1.10 |
45 |
Y280M-8 |
12-24 |
8970 |
KYF（XCF）型充气机械搅拌式浮选机
KYE (XCF) INFLATABLE MECHANICAL MIX TYPE FLOTATION MACHINE
KYF/XCF型浮选机采用“U”型槽体、空心轴充气和悬挂定子，尤其是采用了一种新式顺轮。这是一种叶片后倾一个角度的锥形轩轮，类似于高比转速的离心泵轮，场送矿浆量大、压头小、功耗低且结构简单。在叶轮腔中还装置了多孔圆筒形空气分配器，使空气能预先均匀地分散在叶轮叶片的大部分区域，提供了较大的矿浆空气接触界面。
在浮选机工作时，随着叶轮的旋转，槽内矿浆从四周经槽底由叶轮下端吸到叶轮叶片之间，同时由鼓风机给入的低压空气经空心轴和叶轮的空气分配器也进入其中。矿浆与空气在叶片之间充分混合后，从叶轮上半部周边向斜上推出，由定子稳流和定向后进入整个槽子中。气泡上升到泡沫稳定区，经过富集过程，泡沫从溢流堰自流溢出，进入泡沫槽，还有一部分矿浆向叶轮下部流去，再经叶轮搅拌，重新混合形成矿化气泡，余的矿浆流向下一槽，直到终成为尾矿。
KYF/XCF type of flotation machine is formed by U trough solid, hollow
shaft inflation, suspension rotor and new type impeller. The cone
impeller lean backwards, the blending quantity is big and the pressure
head is small, the advantages area: simple structure and low energy
consumption. Inside the impeller, there is air distributor, which
distributes air into most parts of impeller evenly.
When flotation machine works, slurry is inhaled from the bottom of the
trough to the space between impellers. Meanwhile, the low-pressure air
send by fan is sent to this area through the air distributor in the
hollow shaft. After sufficient mixing, the slurry is pushed out by the
impeller, and then goes to the whole trough. When the froth rises to the
stable level, after the enrichment processing, froth overflows to the
froth trough from the overflow weir. Another part of ore slurry flows
to lower part of impeller for the re-mix with air. The remained slurry
flows to the next trough until becomes residue.
主要型号及技术参数：
MAIN MODELS AND TECHNICAL PARAMETERS:
|
型号Model |
KYF-1 |
KYF-2 |
KYF-3 |
KYF-4 |
KYF-8 |
KYF-16 |
KYF-24 |
KYF-38 |
|
|
槽体尺寸 |
长Length(mm) |
1000 |
1300 |
1600 |
1800 |
2200 |
2800 |
3100 |
3600 |
|
宽Width(mm) |
1000 |
1300 |
1600 |
1800 |
2200 |
2800 |
3100 |
3600 |
|
|
高Height(mm) |
1100 |
1250 |
1400 |
1500 |
1950 |
2400 |
2900 |
3400 |
|
|
单槽重Single effective weight(kg) |
1056 |
1419 |
1885 |
2206 |
3600 |
5900 |
9830 |
15097 |
|
|
有效容积Effective cubage(m3) |
1 |
2 |
3 |
4 |
8 |
16 |
24 |
38 |
|
|
生产能力(按矿浆体积计算) Production capacity |
0.2-1 |
0.4-2 |
0.6-3 |
1.2-4 |
3-8 |
4-16 |
4-24 |
10-38 |
|
|
主轴电机 |
型号 Model |
Y132M1-6 |
Y160M2-8 |
Y160L-8 |
Y180L-8 |
Y200L-8 |
Y250M-8 |
Y250M-8 |
Y280S-8 |
|
功率Power(kw) |
4 |
5.5 |
7.5 |
11 |
15 |
30 |
30 |
37 |
|
|
叶轮 |
转速Rotation speed(r/min) |
960 |
720 |
720 |
970 |
730 |
730 |
730 |
740 |
|
直径Diameter(mm) |
340 |
410 |
480 |
550 |
630 |
740 |
800 |
880 |
|
|
高度Height(mm) |
215 |
256 |
300 |
340 |
390 |
460 |
- |
545 |
|
|
转速 Rotation speed(r/min) |
281 |
247 |
219 |
200 |
175 |
160 |
150 |
138 |
|
|
圆周速度Circular velocity(m/s) |
5 |
5.3 |
5.5 |
5.76 |
5.77 |
6.7 |
6.25 |
6.36 |
|
|
刮板电动机 Loam board motor |
型号 Model |
Y90S-4 |
Y90S-4 |
Y90L-4 |
Y90L-4 |
Y90L-4 |
Y90L-4 |
Y90L-4 |
Y90L-4 |
|
功率 Power(kw) |
1.1 |
1.1 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
|
刮板 Loam board |
转速Rotation speed(r/min) |
18 |
18 |
16 |
16 |
16 |
16 |
16 |
16 |
|
直径Diameter(mm) |
500 |
500 |
580 |
600 |
600 |
700 |
700 |
700 |
|
|
鼓风机风压Wind pressure of fan(kpa) |
≥12.6 |
≥14.7 |
≥19.8 |
≥19.8 |
≥21.6 |
≥25.5 |
≥30.4 |
≥34.3 |
|
|
**充气量Max air injection amount(m3/m2min) |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
|
型号Model |
XCF-1 |
XCF-2 |
XCF-3 |
XCF-4 |
XCF-8 |
XCF-16 |
XCF-24 |
XCF-38 |
|
|
槽体尺寸 |
长Length(mm) |
1000 |
1300 |
1600 |
1800 |
2200 |
2800 |
3100 |
3600 |
|
