Wilden威尔顿
2655

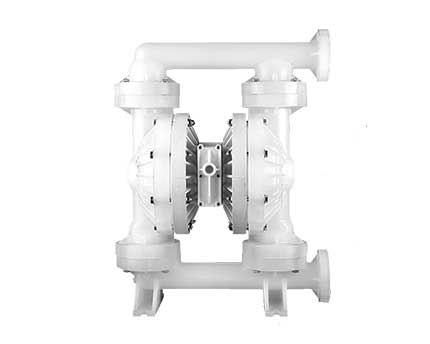

ADVANCED™系列Wilden威尔顿气动隔膜泵特性：
§ 螺栓设计能更大程度地防漏
§ 出色的流速
§ 运行不需要润滑油
§ ADS：Pro-Flo®、Pro-Flo X™或Accu-Flo™技术
ADVANCED™系列Wilden 威尔顿气动隔膜泵技术数据：
§ 可选材质有铝、球墨铸铁、不锈钢、合金C、聚丙烯、聚偏氟乙稀、聚亚安酯
§ 尺寸：6 mm (1/4")到76 mm (3")
§ 接液部类型：BSPT(NPT)或DIN(ANSI)
§ 弹性体耐受的**温度达177° C (350° F)
§ 可选弹性体材质：丁腈橡胶、氯丁橡胶、三元乙丙橡胶、Viton®、Wil-Flex™、Saniflex™、聚亚安酯、聚四氟乙烯
ADVANCED™系列Wilden 威尔顿气动隔膜泵性能数据：
§ **流量：1,021 lpm (270 gpm)
§ **吸程：湿吸>9.8 m(>32.0')，干吸>7.6 m(>25.0')
§ 可通过固体颗粒的**直径：>76 mm(>3")
| Wilden - Advanced 螺栓塑料泵技术规格 | |||||||||||
| 尺寸选择考虑因素 | 型号 | P25 | P100 | P200 | P400 | P800 | P1500 | PX400 | PX800 | ||
| 接液部材质 | 聚丙烯、PVDF | 聚丙烯、PVDF | 聚丙烯、PVDF | 聚丙烯、PVDF | 聚丙烯、PVDF | 聚丙烯、PVDF | 聚丙烯、PVDF | 聚丙烯、PVDF | |||
| 进口尺寸 | 6 mm (1/4") | 13 mm (1/2") | 25 mm (1") | 38 mm (1-1/2") | 51 mm (2") | 76 mm (3") | 38 mm (1-1/2") | 51 mm (2") | |||
| 出口尺寸 | 6 mm (1/4") | 13 mm (1/2") | 25 mm (1") | 38 mm (1-1/2") | 51 mm (2") | 76 mm (3") | 38mm (1-1/2") | 51 mm (2") | |||
| 接头方向 | F | F | F | D | D | C | D | D | |||
| 空气进口 | 3 mm (1/8") | 6 mm (1/4") | 6 mm (1/4") | 13 mm (1/2") | 13 mm (1/2") | 19 mm (3/4") | 19 mm (3/4") | 19 mm (3/4") | |||
| 高度 | 173 mm (6.8") | 277 mm (10.9") | 434 mm (17.1") | 668 mm (26.3") | 804 mm (31.7") | 1279 mm (50.4") | 668 mm (26.3") | 804 mm (31.7") | |||
| 宽度 | 173 mm (6.8") | 234 mm (9.2") | 457 mm (18.0") | 478 mm (18.8") | 604 mm (23.8") | 914 mm (30.6") | 478 mm (18.8") | 604 mm (23.8") | |||
| 深度 | 127 mm (5.0") | 201 mm (7.9") | 231 mm (9.1") | 300 mm (11.8") | 353 mm (13.9") | 584 mm (23.0") | 315 mm (12.4") | 356 mm (14.0") | |||
| 性能 | **出口压力 | 8.6 Bar (125 psig) | 8.6 Bar (125 psig) | 8.6 Bar (125 psig) | 8.6 Bar (125 psig) | 8.6 Bar (125 psig) | 8.6 Bar (125 psig) | 8.6 Bar (125 psig) | 8.6 Bar (125 psig) | ||
| **颗粒物 | 0.7 mm (1/32") | 1.6 mm (1/16") | 4.8 mm (3/16") | 6.4 mm (1/4") | 6.4 mm (1/4") | 13 mm (1/2") | 6.4 mm (1/4") | 6.4 mm (1/4") | |||
| **吸升高度 | 橡胶/热塑性弹性体 | 干 | 5.2 m (17.0') | 3.6 m (11.9') | 5.5 m (18.2') | 6.2 m (20.4') | 5.5 m (18.2') | 6.1 m (20.0') | |||
| 湿 | 8.7 m (28.4') | 9.8 m (32.0') | 9.3 m (30.6') | 8.7 m (28.4') | 9.3 m (30.6') | 9.0 m (29.5') | |||||
| PTFE | 干 | 1.9 m (6.2') | 4.5 m (14.7') | 2.4 m (7.9') | 3.3 m (10.8') | 4.2 m (13.6') | 3.6 m (11.9') | 3.6 m (11.9') | 4.5 m (14.8') | ||
| 湿 | 9.3 m (30.6') | 9.3 m (30.6') | 9.4 m (31.0') | 9.7 m (31.8') | 8.7 m (28.4') | 8.6 m (28.0') | 7.6 m (25.0') | 7.2 m (23.8') | |||
| **流量 | 橡胶/热塑性弹性体 | 58.7 lpm (15.5 gpm) | 220 lpm (58 gpm) | 454 lpm (120 gpm) | 624 lpm (165 gpm) | 450 lpm (119 gpm) | 693 lpm (183 gpm) | ||||
| PTFEf | 16.7 lpm (4.4 gpm) | 57.0 lpm (15.0 gpm) | 174 lpm (46 gpm) | 318 lpm (84 gpm) | 504 lpm (133 gpm) | 784 lpm (207 gpm) | 329 lpm (87 gpm) | 579 lpm (153 gpm) | |||
| Wilden - Advanced 螺栓金属泵技术规格 | ||||||||||||
| 尺寸选择考虑因素 | 型号 | P200 | P400 | P400 | P800 | PX400 | PX400 | PX800 | PX1500 | PX1500 | ||
| 接液部材质 | 铝、不锈钢、球墨铸铁 | 铝 | 不锈钢 | 铝、不锈钢 | 铝 | 不锈钢 | 铝、不锈钢、球墨铸铁 | 铝 | 不锈钢 | |||
| 进口尺寸 | 25 mm (1") | 38 mm (1-1/2") | 38 mm (1-1/2") | 51 mm (2") | 38 mm (1-1/2") | 38 mm (1-1/2") | 51 mm (2") | 76 mm (3") | 76 mm (3") | |||
| 出口尺寸 | 25 mm (1") | 38 mm (1-1/2") | 38 mm (1-1/2") | 51 mm (2") | 38 mm (1-1/2") | 38 mm (1-1/2") | 51 mm (2") | 76 mm (3") | 76 mm (3") | |||
| 接头方向 | F | B | D | A | B | D | A | B | A | |||
| 空气进口 | 6 mm (1/4") | 13 mm (1/2") | 13 mm (1/2") | 13 mm (1/2") | 13 mm (1/2") | 19 mm (3/4") | 19 mm (3/4") | 19 mm (3/4") | 19 mm (3/4") | |||
| 高度 | 343 mm (13.5") | 594 mm (23.4") | 528 mm (20.8") | 760 mm (29.9") | 594 mm (23.4") | 528 mm (20.8") | 760 mm (29.9") | 1031 mm (40.6") | 894 mm (35.2") | |||
| 宽度 | 378 mm (14.9") | 343 mm (13.5") | 384 mm (15.1") | 439 mm (17.3") | 343 mm (13.5") | 384 mm (15.1") | 439 mm (17.3") | 615 mm (24.2") | 541 mm (21.3") | |||
| 深度 | 229 mm (9.0") | 340 mm (13.4") | 294 mm (11.6") | 325 mm (12.8") | 310 mm (12.2") | 310 mm (12.2") | 340 mm (13.4") | 422 mm (16.6") | 597 mm (23.5") | |||
| 性能 | **出口压力 | 8.6 Bar (125 psig) | 8.6 Bar (125 psig) | 8.6 Bar (125 psig) | 8.6 Bar (125 psig) | 8.6 Bar (125 psig) | 8.6 Bar (125 psig) | 8.6 Bar (125 psig) | 8.6 Bar (125 psig) | 8.6 Bar (125 psig) | ||
| **颗粒物 | 6.4 mm (1/4") | 7.9 mm (5/16") | 4.8 mm (3/16") | 6.4 mm (1/4") | 7.9 mm (5/16") | 4.8 mm (3/16") | 6.4 mm (1/4") | 12.7 mm (1/2") | 9.5 mm (3/8") | |||
| **吸升高度 | 橡胶/热塑性弹性体 | 干 | 5.4 m (17.6') | 4.2 m (13.6') | 5.8 m (19.0') | 7.0 m (23.0') | 6.3 m (20.5') | 6.9 m (22.7') | 7.4 m (24.4') | 6.6 m (21.6') | 6.7 m (22.1') | |
| 湿 | 9.3 m (30.6') | 8.9 m (29.5') | 8.8 m (29.0') | 9.5 m (31.2') | 9.0 m (29.5') | 9.3 m (30.6') | 9.3 m (30.6') | 8.8 m (28.9') | 9.5 m (31.2') | |||
| PTFE | 干 | 3.5 m (11.4') | 3.4 m (11.3') | 3.7 m (12.0') | 4.6 m (15.0') | 3.5 m (11.4') | 4.0 m (13.0') | 4.5 m (14.8') | 4.4 m (14.5') | 4.8 m (15.9') | ||
| 湿 | 9.3 m (30.6') | 9.0 m (29.5') | 8.5 m (28.0') | 9.5 m (31.2') | 9.0 m (29.5') | 9.0 m (29.5') | 8.7 m (28.4') | 7.8 m (25.5') | 9.5 m (31.2') | |||
| **流量 | 橡胶/热塑性弹性体 | 212 lpm (56 gpm) | 409 lpm (108 gpm) | 307 lpm (81 gpm) | 591 lpm (156 gpm) | 424 lpm (112 gpm) | 347 lpm (92 gpm) | 712 lpm (188 gpm) | 1021 lpm (270 gpm) | 918 lpm (243 gpm) | ||
| PTFE | 168 lpm (44 gpm) | 329 lpm (87 gpm) | 295 lpm (78 gpm) | 496 lpm (131 gpm) | 338 lpm (89 gpm) | 327 lpm (87 gpm) | 617 lpm (163 gpm) | 765 lpm (202 gpm) | 727 lpm (192 gpm) | |||
